Pressure loss due to pipe friction
The pressure loss due to pipe friction is the pressure loss in a straight, undisturbed pipe section with a constant cross-section.
|
Symbol or abbreviation: |
ΔpR |
|
Usual unit: |
hPa |
|
Equation: |
ΔpR = (l*R) |
The pressure loss (l*R) caused by friction in a straight pipe section with the length l and the internal diameter di depends on the density ρ of the water, the average flow velocity v and the pipe friction coefficient λ.

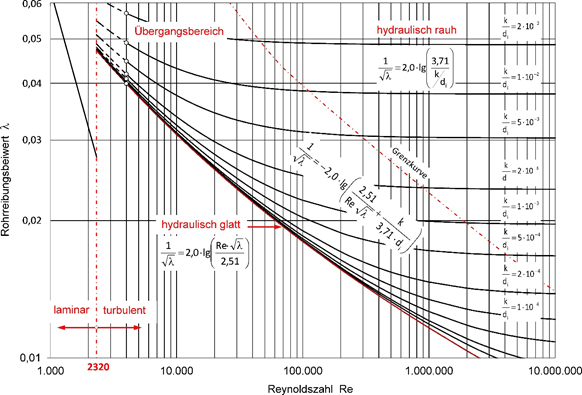

The pipe friction coefficient λ is usually represented as a function of the Reynolds number Re and the relative roughness k/di in the so-called Moody diagram.
