Tapping roof windows

Taps roof window

Button:

Command name: GripRoofWindow

You must have drawn a primary roof and a roof surface for the transfer to the heating load. The roof pitch is automatically adopted and the window height determined accordingly.

  1. Then pick up the window area in the floor plan.
  2. Close the roof window area at the first tapped point or confirm with the Enter key.
  3. End the command with a right mouse click or by pressing the ESC key on the keyboard.
    The tapped skylight is shown in blue in the floor plan.

    Attention:
    To transfer it to the heating load, you must call up the command Record room geometry.
    Tip:
    Use the command Show 3D model to check the building in the 3D model.
Attention:

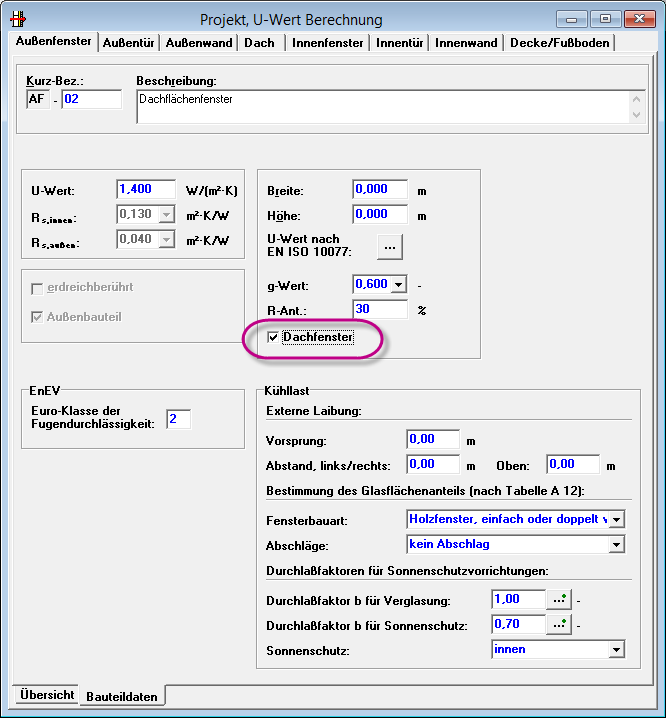

For roof windows, you must ensure that the Roof window checkbox is activated in the U-value calculation.
