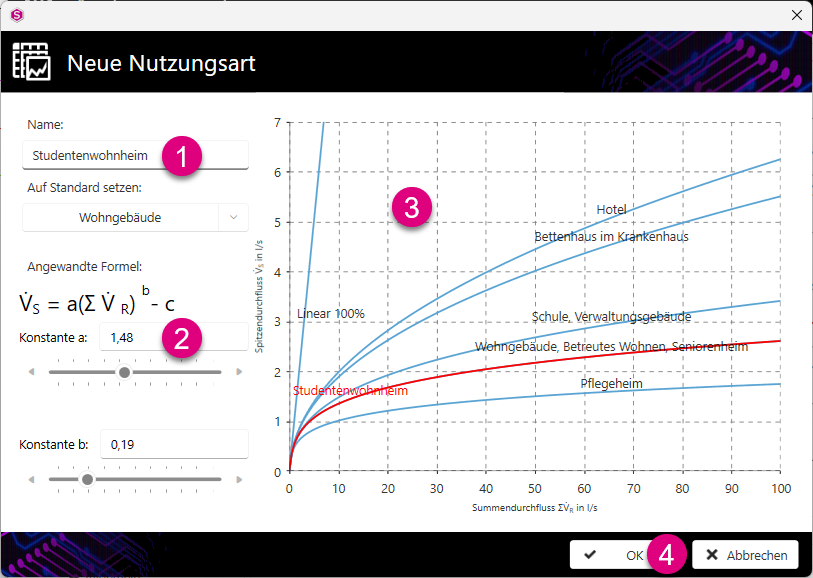

Create usage type (DIN)

With New (DIN)... you add new utilisation types in accordance with DIN 1988-300. This takes you to the New usage type dialogue.

Enter the name of the new usage type.
A red graph is added for the added utilisation type.
Specify your constants for the Peak flow rate.
The graph is customised according to your settings.
Use your values to check the curve in the diagram.
Click Ok to confirm your entry and exit the dialogue.
The new usage type has been created.
