Material editor

With the material editor, CALHYDRA supports you with convenient and fast determination of your dimensions.

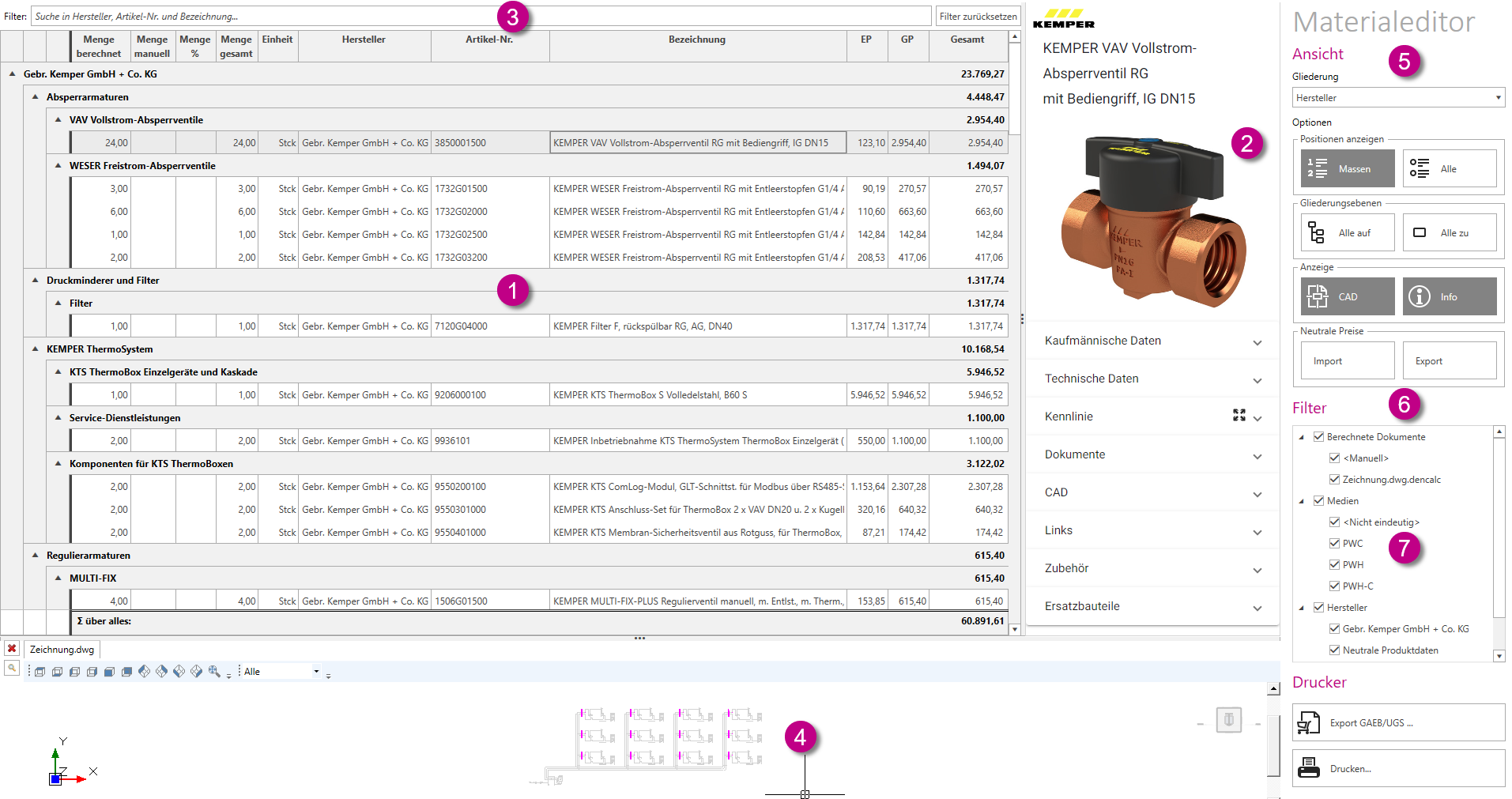

The material editor is divided into several areas.

Grouped display of masses from the project
Detailed information with item description and long text
Full text search for filtered display of masses
Note:
The search reacts to the first letter entered and provides corresponding suggestions. You do not necessarily have to enter the entire search term to achieve the desired result.
Display of a selected document.
Settings for different outline views
Settings for restricting the content in the project parts list
GAEB export and print options
