Types of utilisation (Drinking water wizard options)

It is necessary to select the utilisation types in order to determine the peak flow rate, taking into account the simultaneity of the water withdrawal.

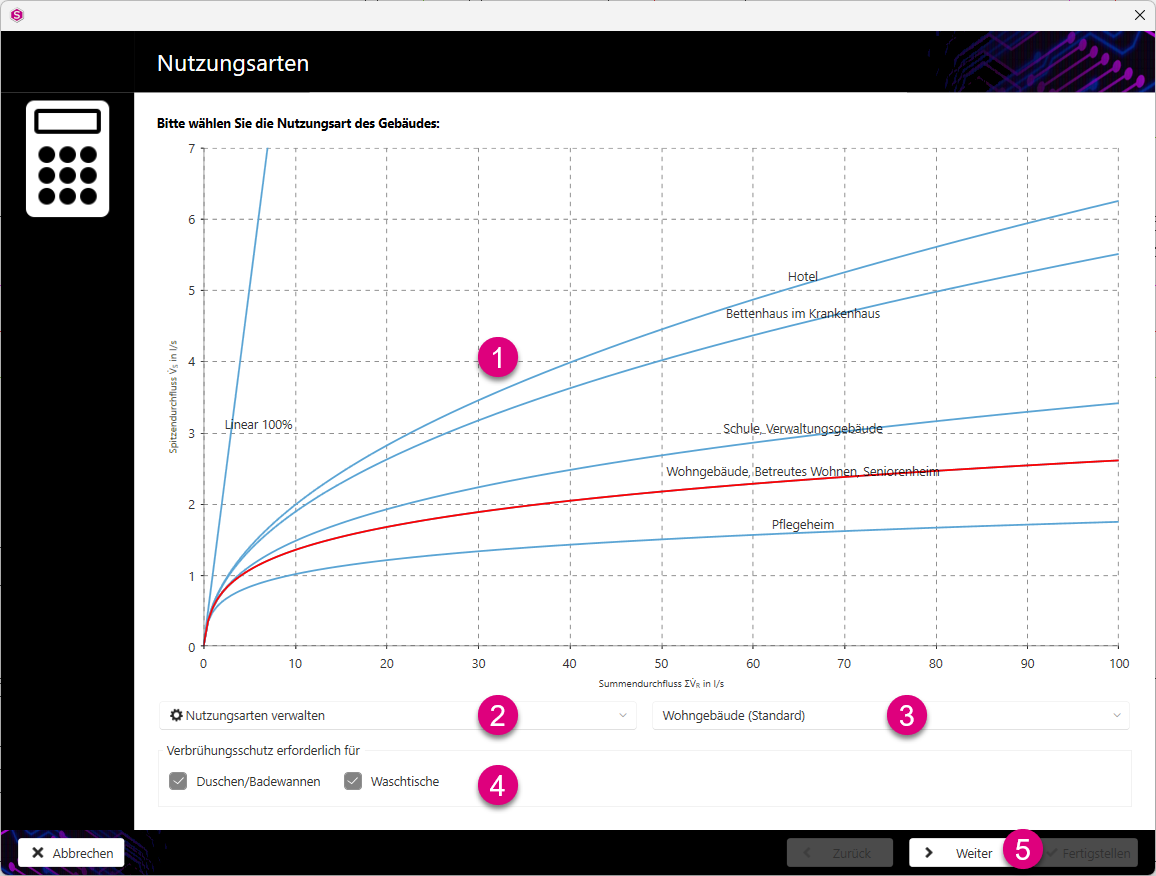

The diagram shows the relationship between Total flow rate and Peak flow rate.
You have the following options to choose from with Manage usage types:
- Create a new utilisation type according to DIN
- Create a linear utilisation type
- Delete a usage type
- Edit a usage type
The drop-down list shows all usage types already created for selection.
If the Showers/bathtubs and washbasins checkboxes are activated, the taps for showers, bathtubs and washbasins are checked within the drawing for the required scalding protection in accordance with DIN EN 806-2. If there is no scalding protection, a warning message is issued for each component group. Quick functions can be used to display the components without scalding protection and to replace the existing components with components with thermostatic fittings.
Note:
If you have already calculated your drawing before changing the scald protection settings, you must recalculate the drawing.
Click Next to go to the next step of the design definitions.
