Pump settings

Settings dialogue for the circulation pump

The Pump Settings dialogue box appears when you double-click the pump icon in the Pipe Network Simulation window or click the Pump button in the Dashboard (Simulation) window.

Note:

For the simulation, the pump used is taken from the calculation.

Operating mode

Depending on the selected pump, you can choose either the ‘Constant Pressure’ or ‘Characteristic Curve’ operating mode. If you have selected the ‘Constant Pressure’ operating mode, you can adjust the calculated pressure difference using the ‘Pressure Difference ’ input field. If you select ‘Characteristic curve ’, you can choose the stage.

Table: Pump pressure difference and flow rate

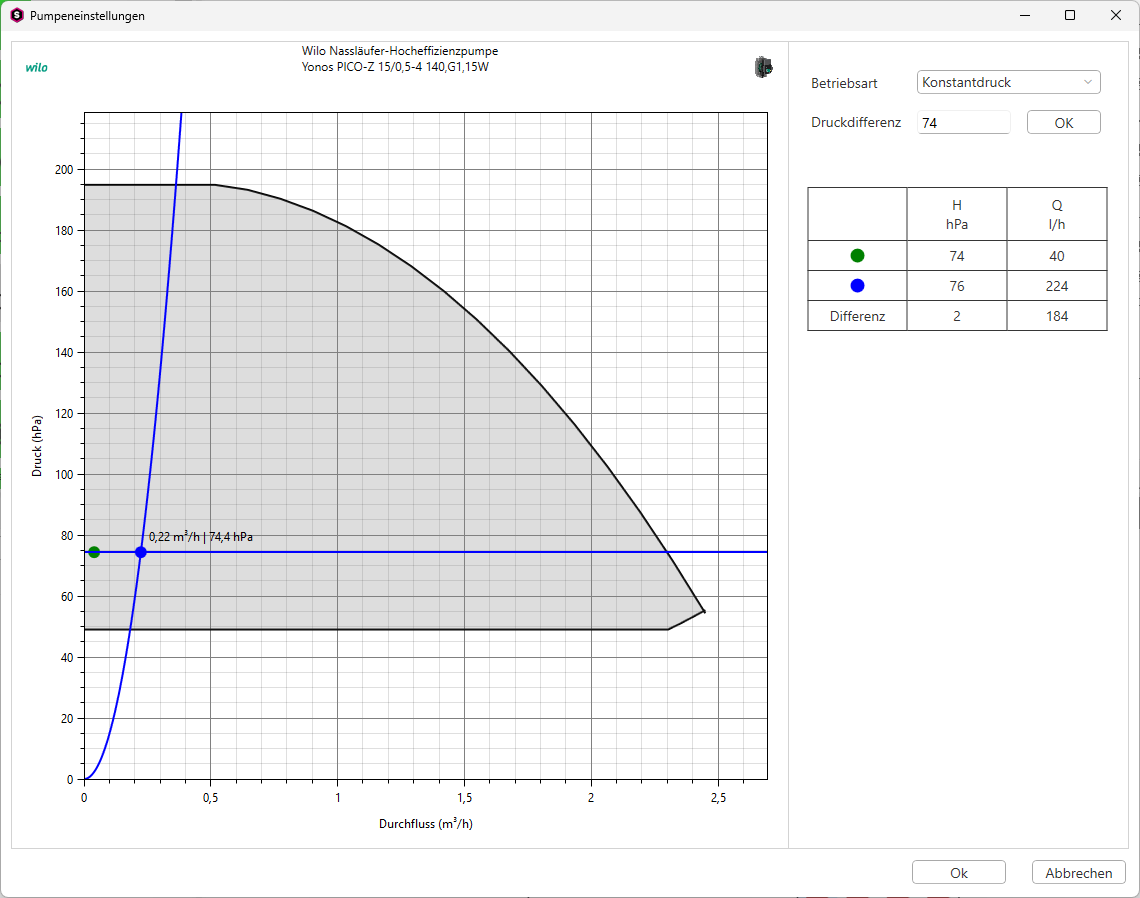

The table to the side of the pump characteristic curve displays the pressure differentials H in hPa and the flow rates Q in l/h. The calculated values (green dot on the graph) and the selected points (blue dot on the graph), as well as the difference between the two values, are displayed one below the other.
