Valve settings

Displays the valve settings for the currently selected valve

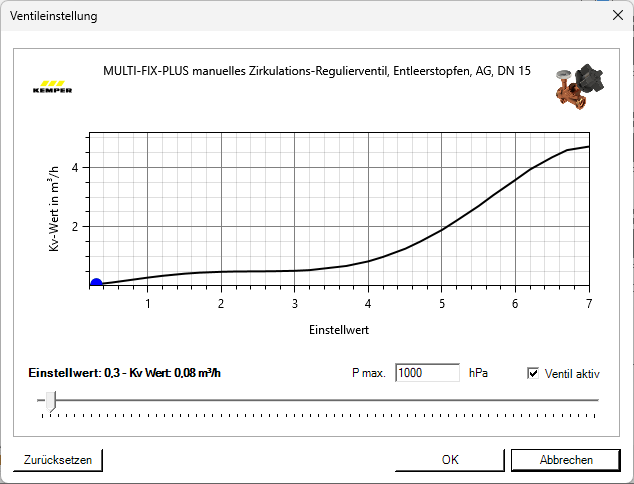

The dialogue box appears after double-clicking on one of the icons for thermal branch control valves and static branch control valves in the Pipe Network Simulation window.

Using the scroll bar, you can change the setpoint for valves or, in the case of branch control valves, the setpoint and the k_v value.
Enter the maximum pressure that may drop across the valve in the ‘P max.’ field . If the value is set too high, this may result in noise. The simulation is not affected by this value; an error message is simply displayed if the value is exceeded.
Use the ‘Valve active’ tick box to deactivate or activate the valve.
Use the ‘Reset’ button to restore the values to their calculation defaults.
