Flow splitter

Displays the flow splitters and their details in the currently selected flow path

On the left-hand side, you will see a list of all flow splitters with section numbers. The details of the selected flow splitter are displayed on the right-hand side.

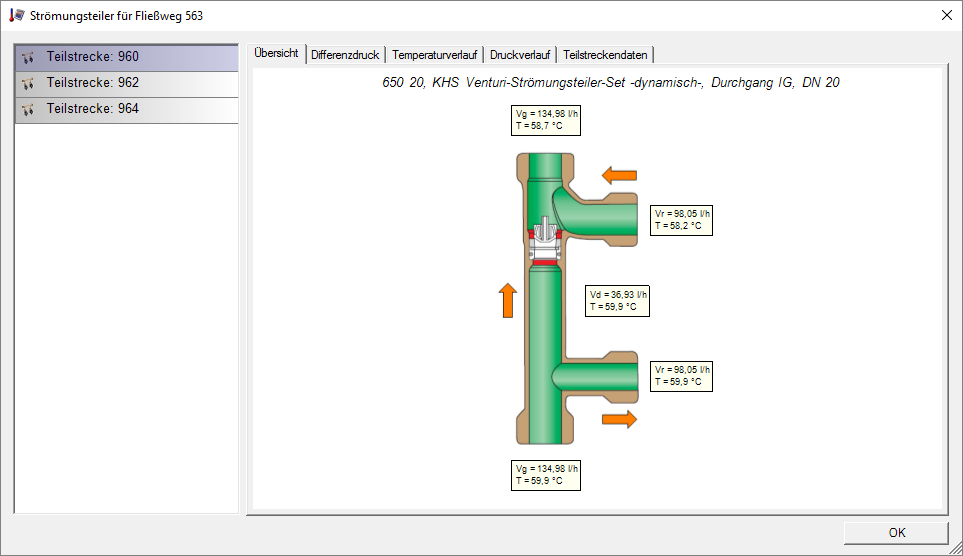

The Overview tab displays the volume flows and temperatures at the individual inlets and outlets of the flow splitter.

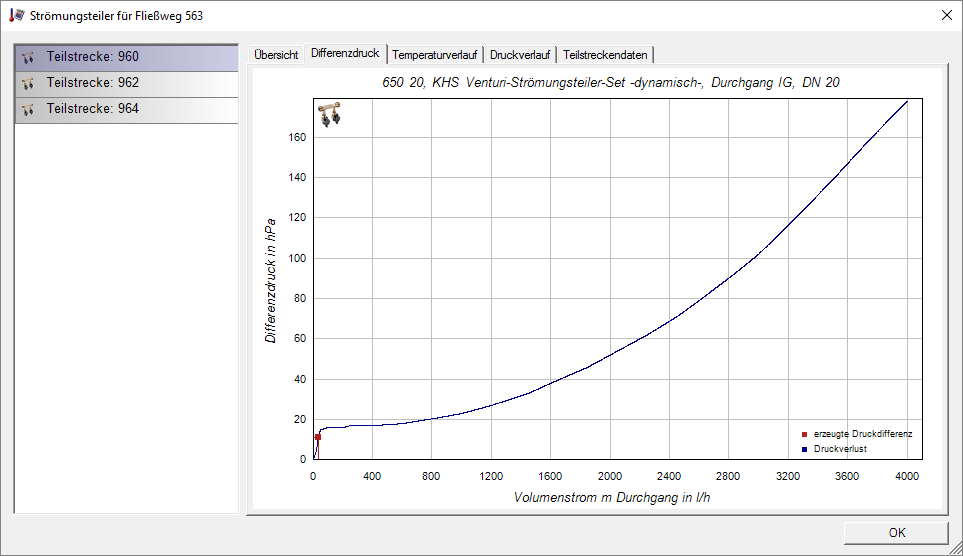

The Differential pressure tab shows the characteristic curve of the flow splitter and the current operating point.

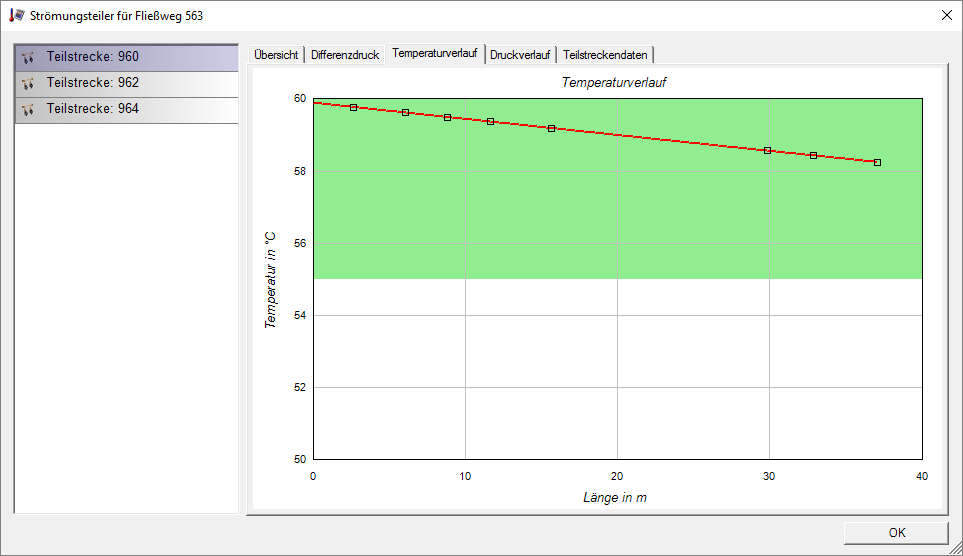

The Temperature curve tab shows the temperature curve in relation to the length of the ring line downstream of a flow splitter.

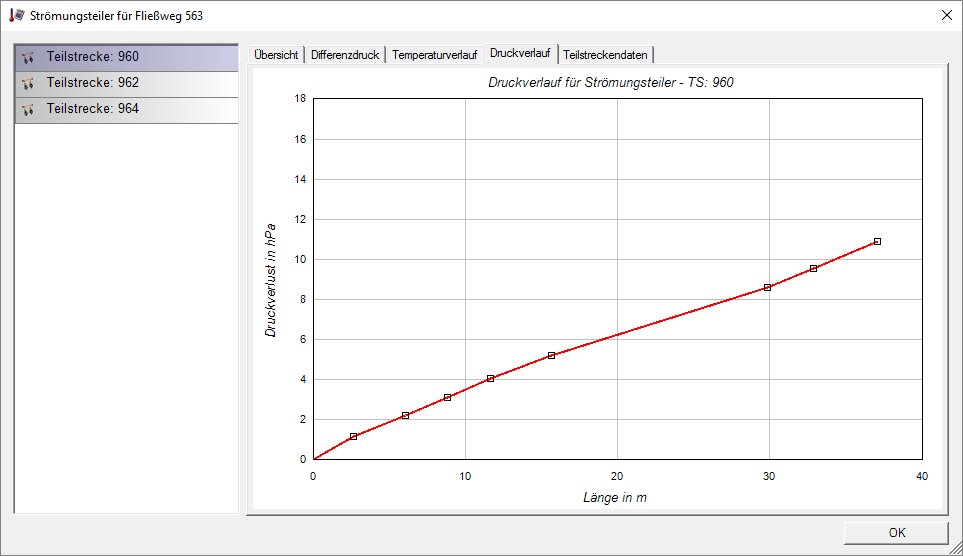

The Pressure curve tab shows the pressure loss in relation to the length of the ring circuit downstream of the flow splitter.

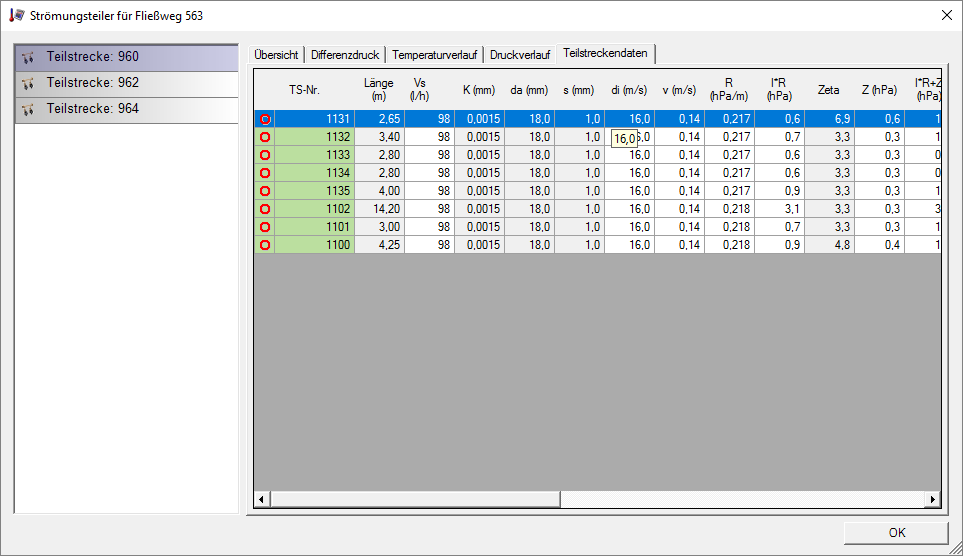

The Section data tab shows the technical data of the sections downstream of the current flow splitter.

Further information can be found on our YouTube channel.

You can access the video here
