Supply

In the Supply area of the Edit configuration dialogue, you define the settings for the supply line routing for the room-based drawing functions.

Drinking water

Table 1. Supply connection

Function	Explanation of the function

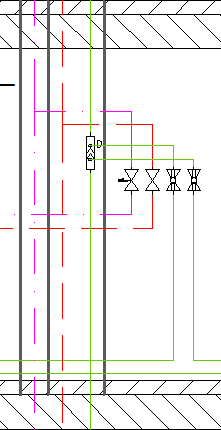

Shaft variant	Manholes are generated. Note: To generate shafts, the Draw shafts checkbox under ArchitectureGeneral must be activated.

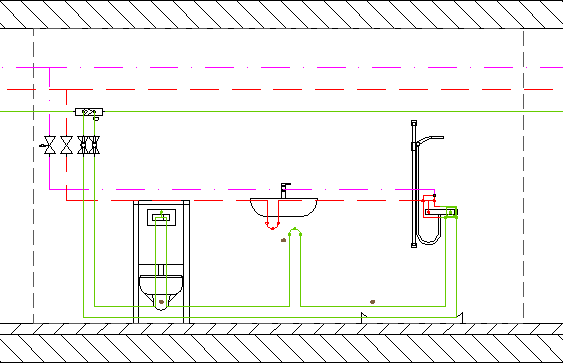

Direct ceiling variant	If cables are routed into the side of the room, the cables are connected directly to these cables.

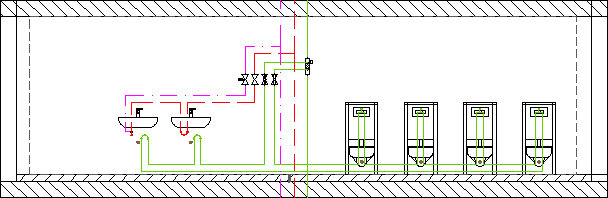

Left position	The manhole is unthreaded on the left-hand side of the riser.

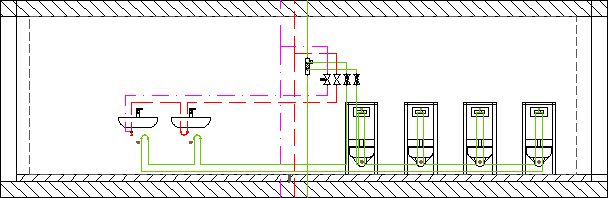

Right-hand position	The manhole is unthreaded on the right-hand side of the riser.

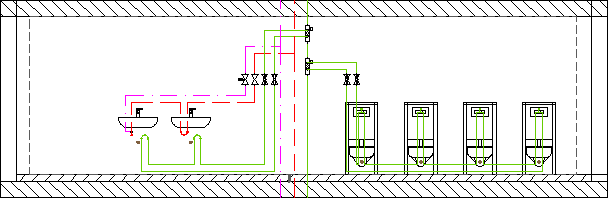

Position on both sides	The shaft is unthreaded on both sides.
Auto position	The side of the shaft threading is determined automatically. The side with the most consumers is favoured. If there are the same number of consumers on the right and left of the riser, the cable is branched off on the right-hand side.

Table 2. Cable routing

Function	Explanation of the function

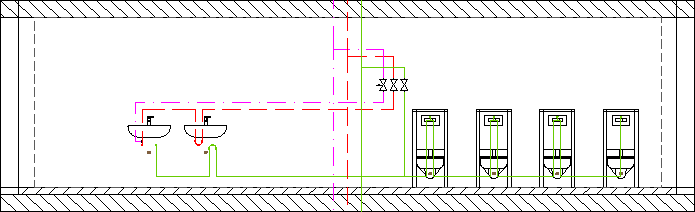

PWC series	The PWC cable is routed to the floor with a looped cable. Flush-mounted and surface-mounted shut-offs or surface-mounted or flush-mounted full-current shut-offs can be generated for the PWC line.
PWC series counted	The PWC line is routed to the floor with a looped-through line via a water meter. Flush-mounted and surface-mounted shut-offs or surface-mounted or flush-mounted full-flow shut-offs can be generated for the PWC line.

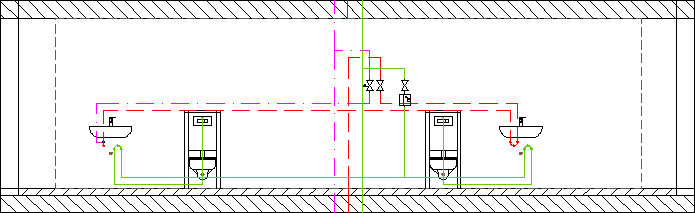

PWC series hygienically counted	The PWC line is fed into the floor via a water meter with a looped-through line. For the best possible flushing of the network, the consumer with the largest water change is connected at the end of the line. Flush-mounted and surface-mounted shut-off valves or surface-mounted or flush-mounted full-flow shut-off valves can be generated for the PWC line.

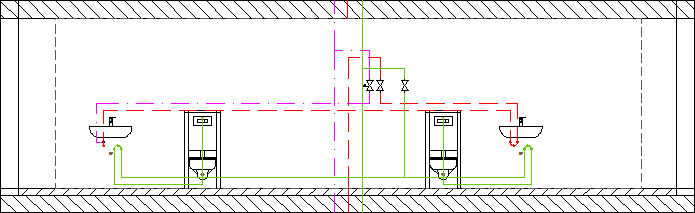

PWC series hygienic	The PWC line is fed into the floor with a looped-through line. For the best possible flushing of the network, the consumer with the largest water change is connected at the end of the line. Flush-mounted and surface-mounted shut-offs or surface-mounted or flush-mounted full-flow shut-offs can be generated for the PWC line.

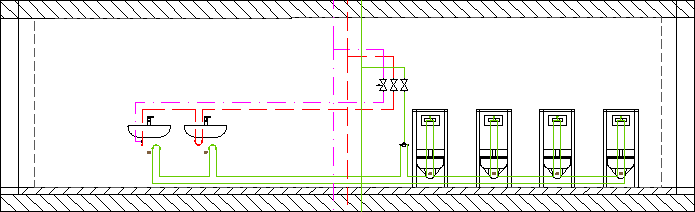

PWC ring	The PWC cable is routed via a ring cable T-piece. Flush-mounted and surface-mounted shut-offs or surface-mounted or flush-mounted full-current shut-offs can be generated for the PWC cable.

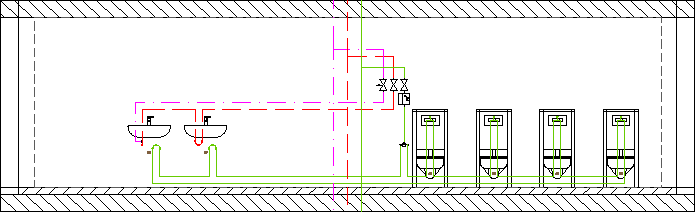

PWC ring counted	The PWC line is routed to the floor via a water meter including a ring line T-piece. Flush-mounted and surface-mounted shut-offs or surface-mounted or flush-mounted full-flow shut-offs can be generated for the PWC line.

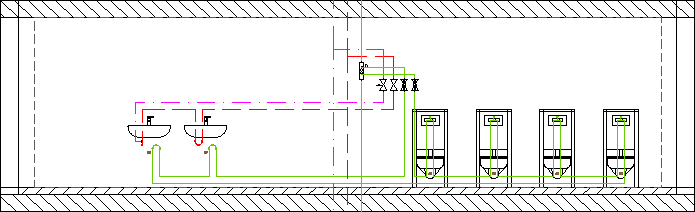

PWC KHS	The PWC line is routed to the floor via a flow splitter including a full-flow shut-off valve. Surface-mounted or flush-mounted full-flow shut-off valves can be generated.
PWH/PWH-C circulation	The circulation pipe is brought together on the floor. Surface-mounted or concealed shut-off valves or surface-mounted or concealed full-flow shut-off valves can be generated for the PWH line. A thermostatic regulating valve (KEMPER ETA-THERM, KEMPER MULTI-THERM) or a static regulating valve (KEMPER MULTI-FIX-PLUS) can be selected in the circulation pipe for the regulating valves on the floor.

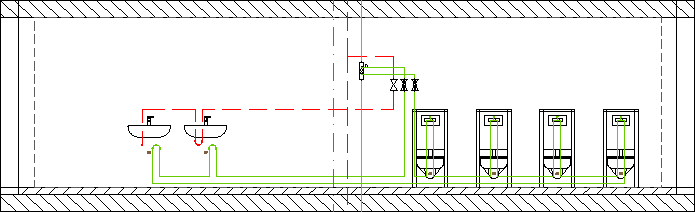

PWH/PWH-C series	The PWH pipe is fed into the floor with a looped pipe. Flush-mounted and surface-mounted shut-offs or surface-mounted or flush-mounted full-flow shut-offs can be generated for the PWH cable.

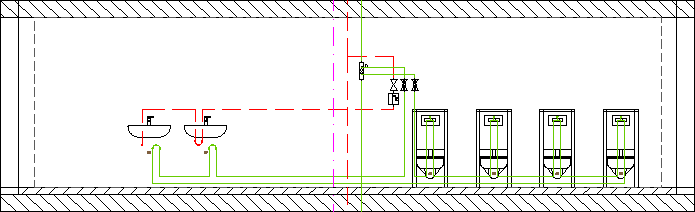

PWH/PWH-C series counted	The PWH line is routed to the floor with a looped-through line via a water meter. Flush-mounted and surface-mounted shut-offs or surface-mounted or flush-mounted full-flow shut-offs can be generated for the PWH line.

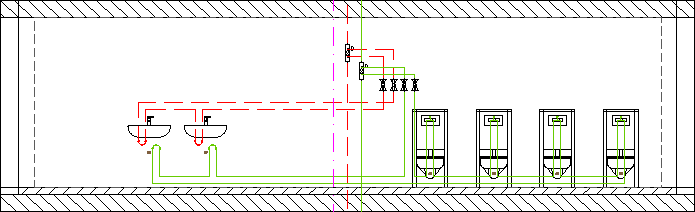

PWH/PWH-C KHS	The PWH cable is routed to the floor with a flow splitter. Flush-mounted and surface-mounted shut-offs or surface-mounted or flush-mounted full-flow shut-offs can be generated for the PWH line.

Table 3. Shut-off/regulating valve

Function	Explanation of the function
Shut-off/regulating valve	Different shut-off valves can be selected for PWC and PWH lines depending on the selected line routing. For PWH-C pipes, you can select a thermostatic regulating valve or a static regulating valve.

Important:

In order for the configuration changes made to be applied to the current drawing, you must call up the function Update all or Update selection again.
