Storey

In the Floor area of the Edit configuration dialogue, you define the settings for the supply line routing for the room-based drawing functions.

Drinking water

Table 1. Connection type
Function	Explanation of the function

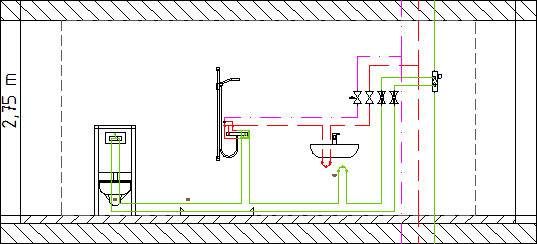

Thermal isolator	If appropriate, the consumers are connected with a thermal separator. All other consumers are connected with a double-wall disc.

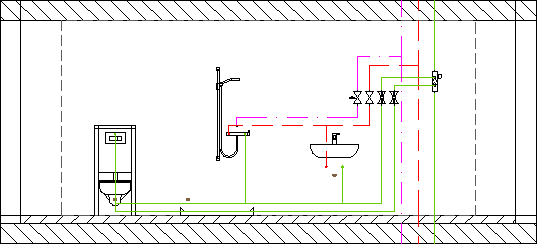

Stub line	All consumers are connected with stub lines.

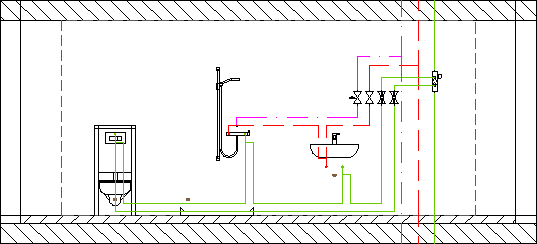

T-piece passage	All consumers are connected with a T-piece in the passageway.

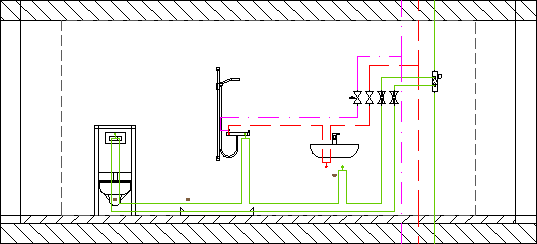

T-piece outlet	All consumers are connected with a T-piece in the outlet.

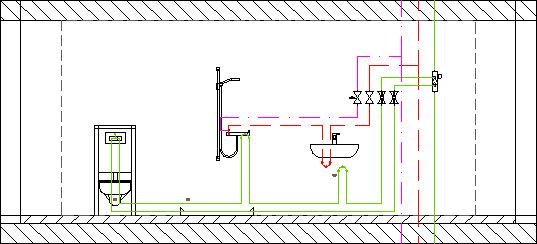

Double wall disc	All consumers are connected with a double wall disc.

Table 2. Connection height
Function	Explanation of the function

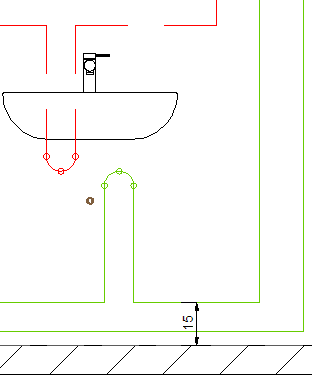

PWC connection height	The specified connection height in cm defines the distance between the connection cable of the PWC cable and the lower edge of the room.

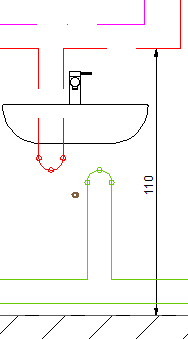

Connection height PWH	The specified connection height in cm defines the distance of the connection cable of the PWH cable to the lower edge of the room.

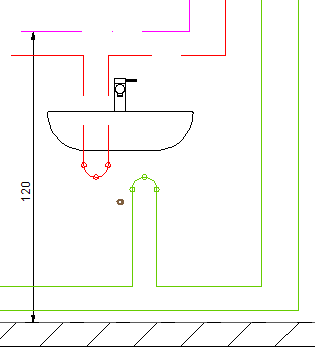

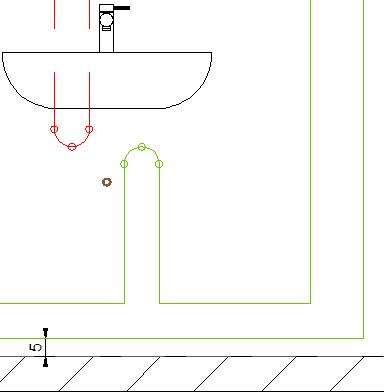

Return height PWC	The specified return height in cm defines the distance of the return pipe of the PWC pipe to the lower edge of the room.
Return height PWH	The specified return height in cm defines the distance of the connection pipe of the circulation pipe to the lower edge of the room.

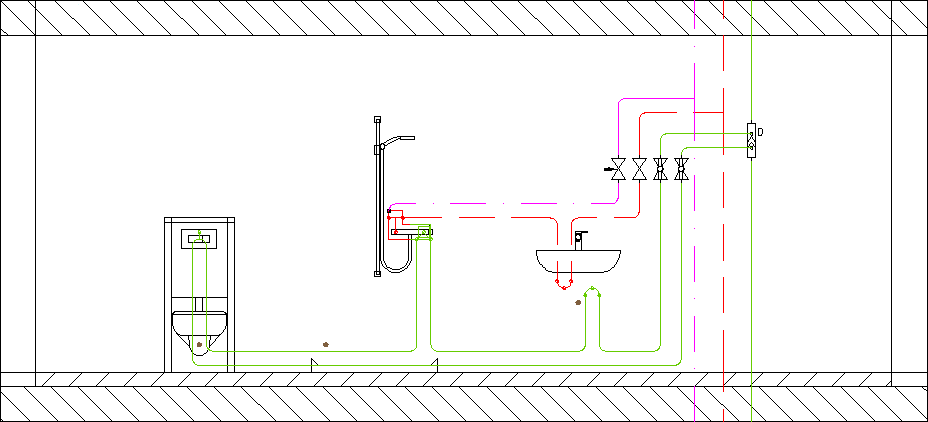

Illustration of flexible pipe	The pipe network is generated with bent pipes. No deflections are taken into account for the calculation.

Important:

In order for the configuration changes made to be applied to the current drawing, you must call up the function Update all or Update selection again.
