Edit CAD settings

Opens the CAD configurations

Button:

Command name: EditCadConfiguration

Important:
The functions for the individual representations of the string symbols are only available to you with a separate licence. If you do not have a separate licence, only string symbols without line and insulation information will be displayed.
  1. Define the display of the line symbols in the Line symbols area.
    • Select the desired display in the drawing from the drop-down menu Display of line symbols for heating.
    • Select the desired representation in the drawing from the Display of pipe symbols for domestic hot water drop-down menu.
    • Select the desired representation in the drawing from the drop-down menu Representation of drainage line symbols.
    Table 1. Representation of the line symbols
    Hatched Outline Without

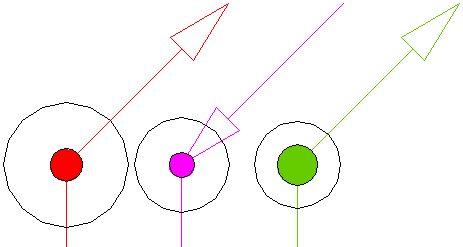

    • The solid hatching represents the actual size of the pipe with the corresponding medium.
    • The black inner circle represents the actual outer diameter of the pipe.
    • The black outer circle represents the actual outer diameter of the insulation.
    • The coloured inner circle belongs to the corresponding pipe symbol.

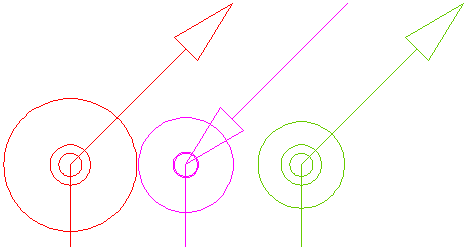

    • The coloured middle circle represents the outline of the actual outer diameter of the pipe.
    • The coloured outer circle represents the outline of the actual outer diameter of the insulation.

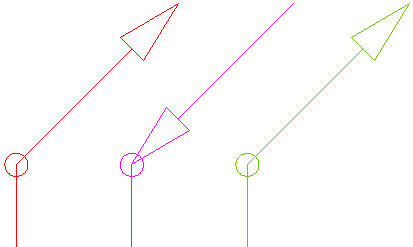

    • The pipe symbol is displayed without pipe and insulation information.
    Note:
    The drawing must be recalculated to change the representations, as the outlines of the respective representations correspond to the actual dimensions.
  2. Define the representation of the crossing points in the Crossing points area.
    Note:
    At the crossing points, you are shown where lines cross in the drawing and where the lines are connected. In the Crossing points drop-down menu for the individual trades, you can choose between the drawing representations solid, overbend, overbend (small) and underbend.
    Table 2. Representations of the crossing points

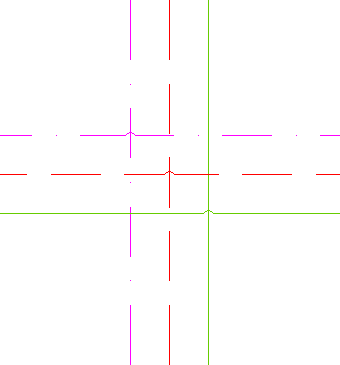

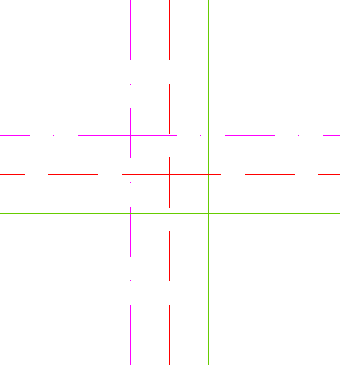

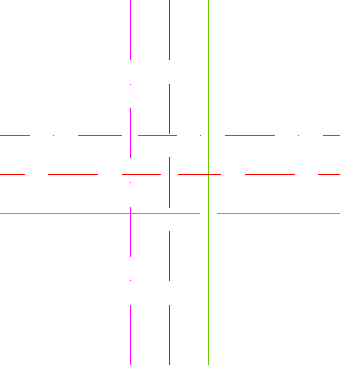

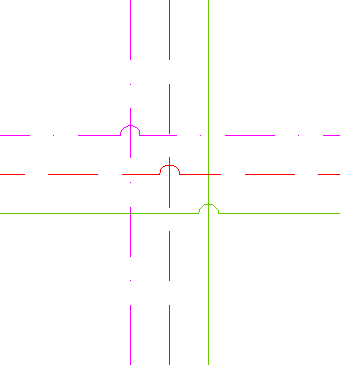

    ContinuousOverarchOverarch (small)Interrupted
    The set representation is visible after entering the Edit perspective or after the drawing has been entered.
