Edit building data

Edit building data

Button:

Command name: EditBuildingData

You can use EditBuildingData to edit building data in a floor plan drawing.

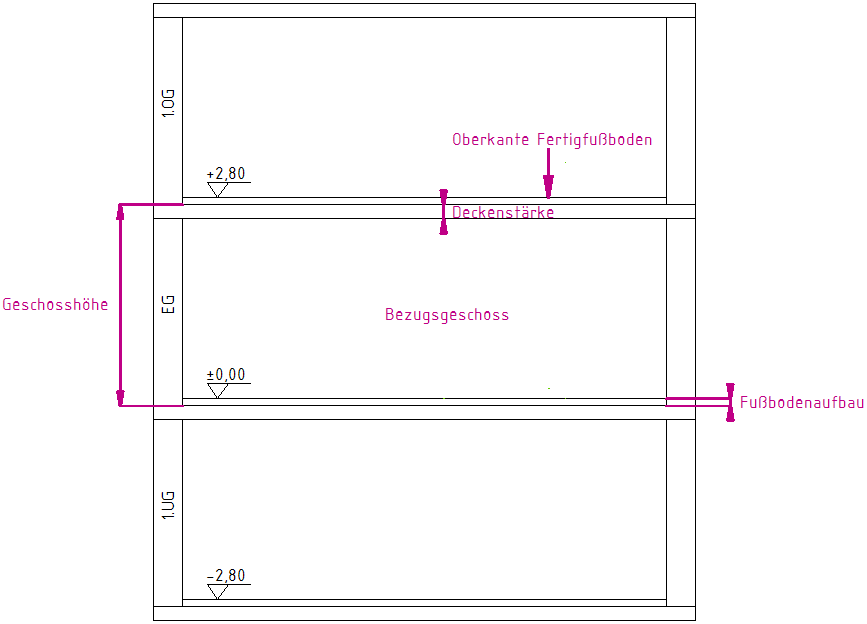

The following building properties can be customised:

Make your desired adjustments in the Building data dialogue.
- Select the reference storey from the drop-down menu.
- Enter the height of the top edge of the floor above ground level in metres.
- In the Name column, change the name of the floor by entering it in the cell.
- In the Floor height (m) column, change the floor height by entering it in the cell.
- In the Ceiling thickness (m) column, change the ceiling thickness by entering it in the cell.
- In the Floor structure column (m), change the height of the floor structure by entering it in the cell.
- The height of the top edge of the finished floor is calculated and displayed in the Floor top edge height (m) column based on the previous entries.
Confirm your changes in the Building data dialogue with OK.

The changes are transferred to the drawing and the corresponding section of the storey frame is displayed on a separate layer.

Click here to watch the video
