11 Counted ring installation

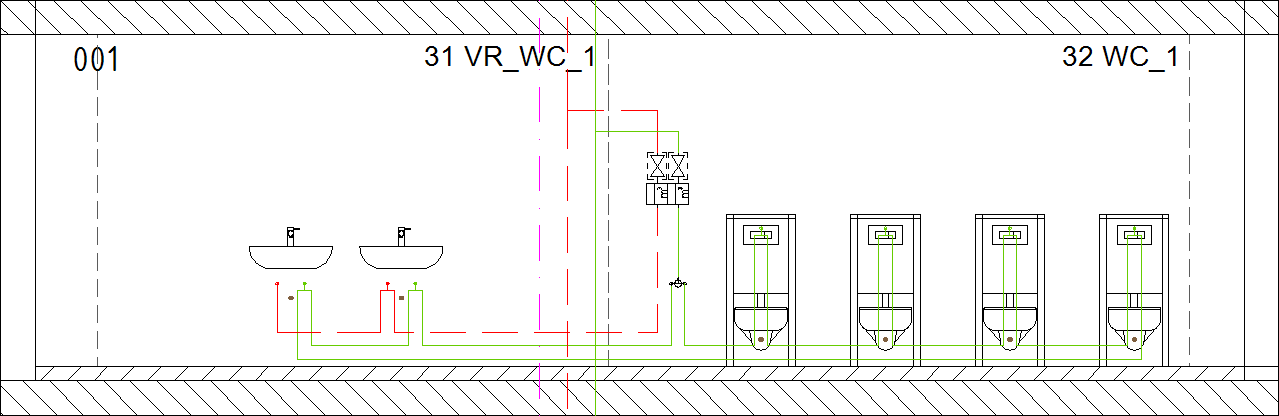

The configuration 11 Counted ring installation in the Room-based drawing window, which is integrated in the delivery state, generates floor lines and connects the consumers with individual supply lines. A ring installation is generated in the cold water. Water meters with a concealed shut-off are generated on the floor. The sanitary objects are connected with a T-piece in the outlet.

Rooms/room networks, consumers and risers are required to generate a complete pipe network in accordance with the regulations.

Once all the lines have been generated, the consumers are connected and the corresponding settings for the floor installation have been taken into account.
