Room-based drawing
The Room-based drawing window in the Drinking water and waste water section allows you to configure and display all rooms and room combinations within the drawing.
Select configuration
Several configurations are available for use on delivery. These contain a preconfigured set of rules for line and room management.
Drinking water configuration
02 KHS flow splitter PWC + Etatherm double wall disc

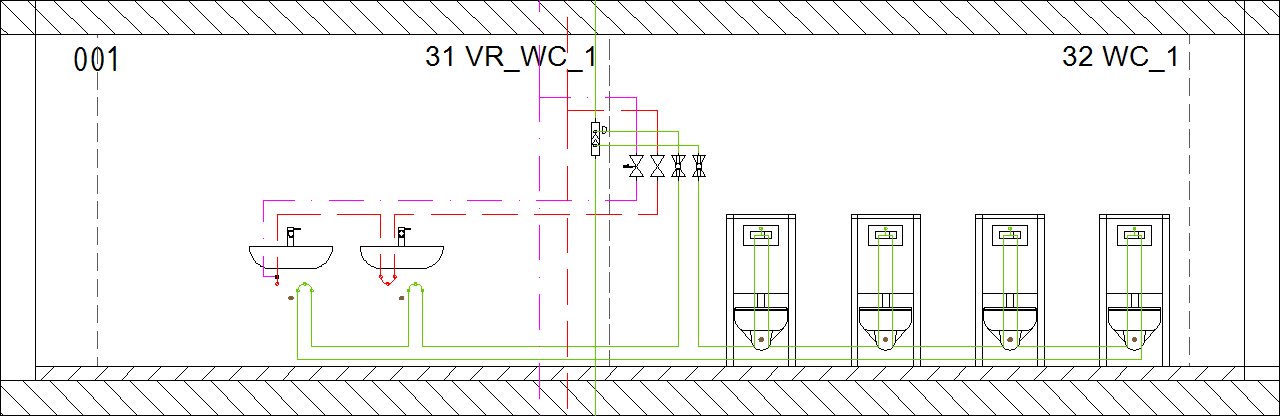

The 02 KHS flow splitter PWC + Etatherm double wall disc configuration integrated in the room-based drawing window generates floor lines and connects the consumers with individual supply lines. This creates an installation with a flow splitter in the cold water. A thermostatic circulation regulating valve, in this case an ETA-THERM, is used as the regulating valve. Depending on the type of consumer, the object connection is made with a double wall disc or a T-piece connection.
