Room-based drawing
The Room-based drawing window in the Drinking water and waste water section allows you to configure and display all rooms and room combinations within the drawing.
Select configuration
Several configurations are available for use on delivery. These contain a preconfigured set of rules for line and room management.
Drinking water configuration
01 KHS flow splitter PWC + Etatherm TTMB
The KHS 01 flow splitter PWC + Etatherm TTMB configuration integrated in the room-based drawing window generates floor lines and connects the consumers with individual supply lines. This creates an installation with a flow splitter in the cold water. A thermostatic circulation regulating valve, in this case an ETA-THERM, is used as the regulating valve. For consumers with a wall fitting, the object connection is made with a thermal separator.

Appendix
- Pipe network basics
- Dialogues and additional information
  - 3D view
    The 3D view window displays a 3D overview of the currently captured or calculated drawing. The bidirectional link with the drawing ensures that the currently selected object is always visible in the drawing and in the view window.
  - Wastewater lifting unit
    The component Wastewater lifting unit is used to integrate components that are drained via the wastewater lifting unit in the drawing.
  - Design options (waste water)
    Drawing-specific settings relating to your calculation are set in the Design options dialogue.
  - Design options (heating)
    Drawing-specific settings relating to your calculation are set in the Design options dialogue.
  - Design options (drinking water)
    Drawing-specific settings relating to your calculation are set in the Design options dialogue.
  - Construction stages
    You can divide a drawing into construction stages so that you can later create a material extract according to construction stages.
  - Component properties
    In the Edit and Calculate work perspective, your selection in the drawing is highlighted in colour. Section properties and component properties can be displayed and edited differently from the global project settings.
  - Component filter
    The component filter allows you to quickly filter the selected components in the drawing.
  - Edit labelling
    The predefined labelling features can be configured in the text field {Platzhalter} for features and constant text.
  - CAD-Performance Tool
    The CAD Performance Tool is a tool for the automated revision of plans to improve performance.
  - Drainage areas
    The Drainage areas window in the Drainage section is divided into two tabs.
  - Find function
    STUDIO has a parameterised search function that supports you when searching for drawn sections and components in the drawing, when selecting smart blocks to insert and when selecting products.
  - Heat load report
    With the preview of the calculation output, STUDIO supports you in customising the calculation output.
  - Hydraulics report
    With the preview of the calculation output, STUDIO supports you in customising the calculation output.
  - Types of ventilation in building drainage
  - Mass extract
    With the preview of the mass statement, STUDIO supports you in customising the printout of the masses.
  - Material Editor
    STUDIO ’s Material Editor helps you to calculate your quantities quickly and easily.
  - Diaphragm expansion vessel
    The drawing of a diaphragm expansion vessel is a prerequisite for its design.
  - Options Wizard (waste water)
    The options wizard guides you through the settings for the design.
  - Options assistant (heating)
    The options wizard guides you through the settings for the design.
  - Options Wizard (drinking water)
    The options wizard guides you through the settings for the design.
  - Starting the Plot Wizard
    Starts the plot wizard
  - Project data
    The Project data dialogue contains project information for the current project, for example for the project cover sheet or to determine the rainfall donations.
  - Product sequence or product selection
    In the Product sequence or Product selection dialogue, select the product sequence or a product for components.
  - Project data
    The Project data dialogue contains project information for the current project, for example for the project cover sheet or to determine the rainfall donations.
  - Project and application settings
    Cross-project application settings are defined in the project and application settings.
  - Room-based drawing
    The Room-based drawing window in the Drinking water and waste water section allows you to configure and display all rooms and room combinations within the drawing.
    - Draw space
      Creates a space polygon on the DEND_RAUM layer in order to create the prerequisites for space-based drawing.
    - Select configuration
      Several configurations are available for use on delivery. These contain a preconfigured set of rules for line and room management.
      - Drinking water configuration
        01 KHS flow splitter PWC + Etatherm TTMB
        The KHS 01 flow splitter PWC + Etatherm TTMB configuration integrated in the room-based drawing window generates floor lines and connects the consumers with individual supply lines. This creates an installation with a flow splitter in the cold water. A thermostatic circulation regulating valve, in this case an ETA-THERM, is used as the regulating valve. For consumers with a wall fitting, the object connection is made with a thermal separator.
        02 KHS flow splitter PWC + Etatherm double wall disc
        The 02 KHS flow splitter PWC + Etatherm double wall disc configuration integrated in the room-based drawing window generates floor lines and connects the consumers with individual supply lines. This creates an installation with a flow splitter in the cold water. A thermostatic circulation regulating valve, in this case an ETA-THERM, is used as the regulating valve. Depending on the type of consumer, the object connection is made with a double wall disc or a T-piece connection.
        03 KHS flow splitter PWC + PWH TTMB
        The configuration 03 KHS flow splitter PWC + PWH TTMB in the Room-based drawing window, which is integrated on delivery, generates floor lines and connects the consumers with individual supply lines. This creates an installation with a flow splitter in the cold water and hot water. For consumers with a wall fitting, the object connection is made with a thermal separator.
        04 KHS flow splitter PWC + PWH double wall disc
        The 04 KHS flow splitter PWC + PWH double wall disc configuration integrated in the room-based drawing window generates floor lines and connects the consumers with individual supply lines. This creates an installation with a flow splitter in the cold water and hot water. Depending on the consumer type, the object connection is made with a double wall disc or a T-piece connection.
        05 Stub line installation
        The configuration 05 Stub line installation in the Room-based drawing window, which is integrated on delivery, generates floor lines and connects the consumers with individual supply lines. The loads are connected with a stub line.
        10 Counted looped through
        The configuration 10 Counted looped through in the Room-based drawing window, which is integrated on delivery, generates floor lines and connects the consumers with individual supply lines. Water meters with a concealed shut-off are generated. The consumers are connected with a T-piece in the outlet.
        11 Counted ring installation
        The configuration 11 Counted ring installation in the Room-based drawing window, which is integrated in the delivery state, generates floor lines and connects the consumers with individual supply lines. A ring installation is generated in the cold water. Water meters with a concealed shut-off are generated on the floor. The sanitary objects are connected with a T-piece in the outlet.
        12 Counted stub line installation
        The configuration 12 Counted branch line installation in the Room-based drawing window, which is integrated on delivery, generates floor lines and connects the consumers with individual supply lines. Water meters with a concealed shut-off device are generated. The consumers are connected with a branch line.
        20 Horizontal KHS flow splitter PWC + Etatherm TTMB
        The 20 Horizontal KHS flow splitter PWC + Etatherm TTMB configuration integrated in the delivery state in the Room-based drawing window generates floor lines for horizontal installations and connects the consumers with individual supply lines. This creates an installation with a flow splitter in the cold water. A thermostatic circulation regulating valve, in this case an ETA-THERM, is used as the regulating valve. For consumers with a wall fitting, the object connection is made with a thermal separator.
        21 Horizontal KHS flow splitter PWC + PWH TTMB
        The configuration 21 Horizontal KHS flow splitter PWC + PWH TTMB in the Room-based drawing window, which is integrated on delivery, generates floor lines for horizontal installations and connects the sanitary objects with individual supply lines. This creates an installation with a flow splitter in the cold water and hot water. For consumers with a wall fitting, the object connection is made with a thermal separator.
        22 Horizontal KHS flow splitter PWC + PWH double wall disc
        The 22 Horizontal KHS flow splitter PWC + PWH double wall disc configuration integrated in the Room-based drawing window generates floor lines for horizontal installations and connects the consumers with individual supply lines. This creates an installation with a flow splitter in the cold water and hot water. Depending on the consumer type, the object connection is made with a double wall disc or a T-piece connection.
        23 Horizontal stub line installation
        The configuration 23 Horizontal stub line installation in the Room-based drawing window, which is integrated on delivery, generates floor lines for horizontal installations and connects the consumers with individual supply lines. The consumers are connected with a stub line.
      - Waste water configuration
    - Options
      Under Options in the Room-based drawing window, you can access the configuration management of the selected configuration.
    - Delete all
      Delete all removes all pipework within the rooms.
    - Delete selection
      Delete selection removes all pipework within the selected rooms.
    - Update all
      With Update all, all pipework within the rooms is updated.
    - Update selection
      With Update selection, all pipework within the selected rooms is updated.
    - Overview of rooms and room groups
      The room informationis displayed in the tabular overview.
  - Schematic Generator
    The Schematic Generator makes it possible to design a complete wiring diagram without any CAD experience. In a floor plan drawing, the Schematic Generator is not active.
  - Simulation
    The simulation is divided into a circulation simulation for hot and cold water and a water withdrawal simulation.
  - Section properties
    In the Edit and Calculate work perspective, your selection in the drawing is highlighted in colour. Section properties and component properties can be displayed and edited differently from the global project settings.
  - Insert drawing reference
    The Insert drawing reference function guides you through the settings for inserting a drawing reference.
  - Water softening system
    The drawing of a water softening system is a prerequisite for its design.
- Component Library Report
- Extended command reference

01 KHS flow splitter PWC + Etatherm TTMB

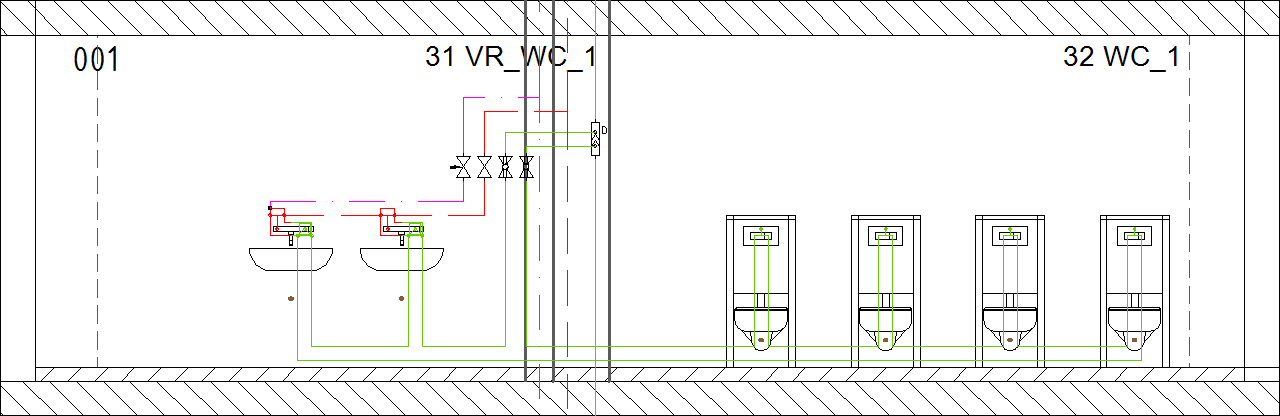

The KHS 01 flow splitter PWC + Etatherm TTMB configuration integrated in the room-based drawing window generates floor lines and connects the consumers with individual supply lines. This creates an installation with a flow splitter in the cold water. A thermostatic circulation regulating valve, in this case an ETA-THERM, is used as the regulating valve. For consumers with a wall fitting, the object connection is made with a thermal separator.

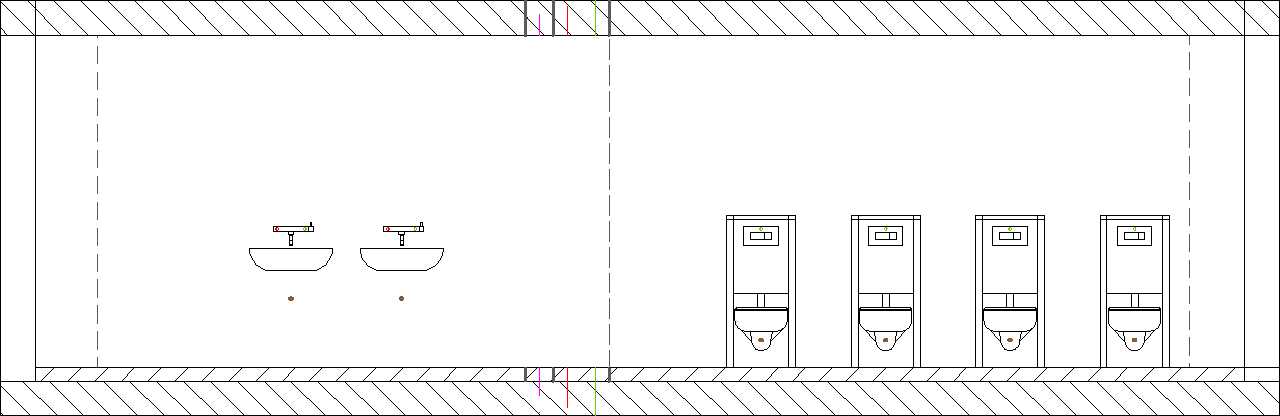

Rooms/room networks, consumers and risers are required to generate a complete pipe network in accordance with the regulations.

Once all the lines have been generated, the consumers are connected with the appropriate regulation technology.
