Trimming

Trims objects so that they touch the edges of other objects

Button:

Command name: _Trim

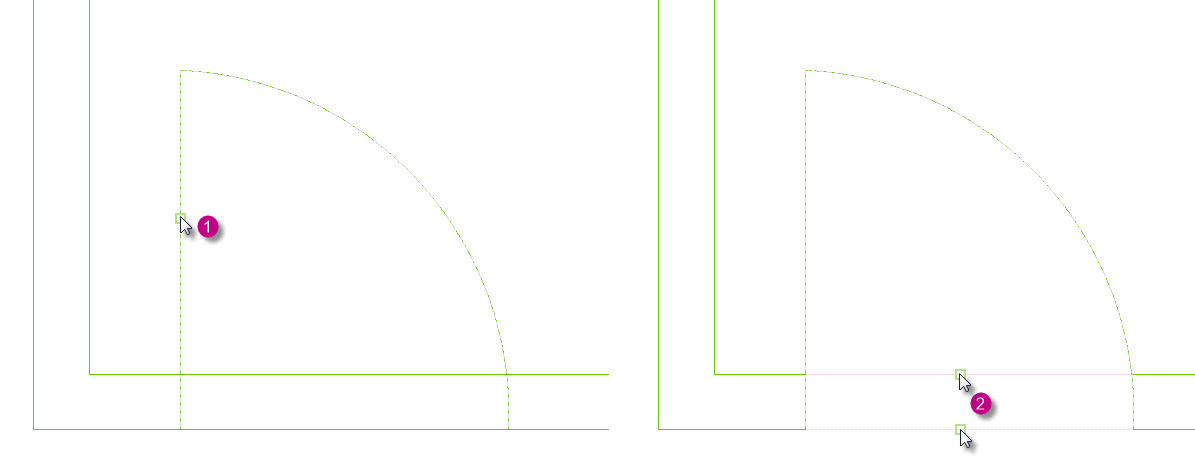

Select the boundaries where the objects are to be trimmed(1). Confirm the selection with the Enter key.
Select the objects that you want to trim(2) and confirm the selection with the Enter key.
