Temperature curve (simulation)
Displays the temperature curve in the currently selected circulation circuit

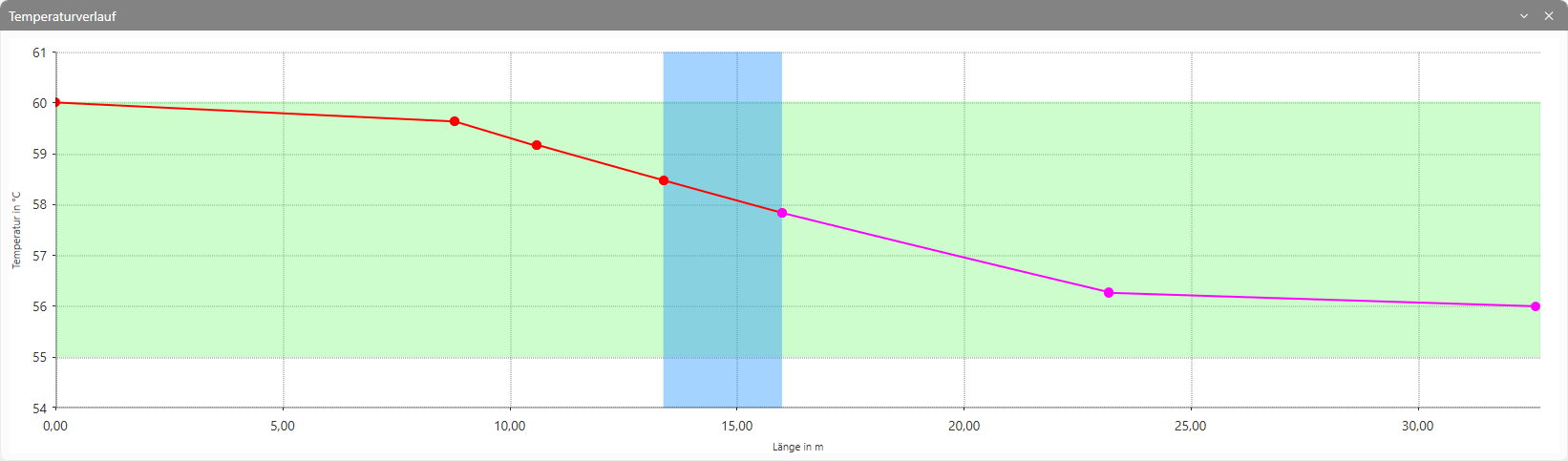

The Temperature curve window shows the unwound pipe length of the hot water circulation flow path.
The red line shows the unwound pipe length of the hot water pipe. The magenta-coloured line shows that of the circulation pipe.
The green shaded area illustrates the temperature range of the DHW heater outlet and DHW heater inlet. The blue shaded area illustrates the section marked in blue in the drawing.
The points shown indicate the respective section inlet and section outlet.
Note:
If the flow path contains an inline circulation, this is indicated by a grey shaded area in the characteristic curve.
