Clean up

Removes unused elements such as layers, line types and hatching patterns from the drawing

Button:

Command name: _purge

_purge Opens the dialogue for cleaning up drawing elements. Unused named objects can be removed from the current drawing. This includes layers, line types and hatching patterns.

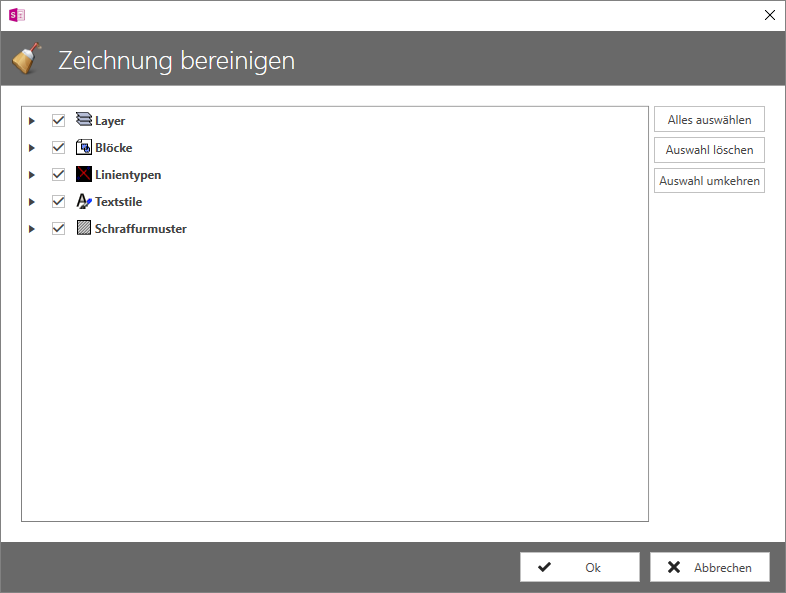

Make the desired settings in the Clean up dialogue.
