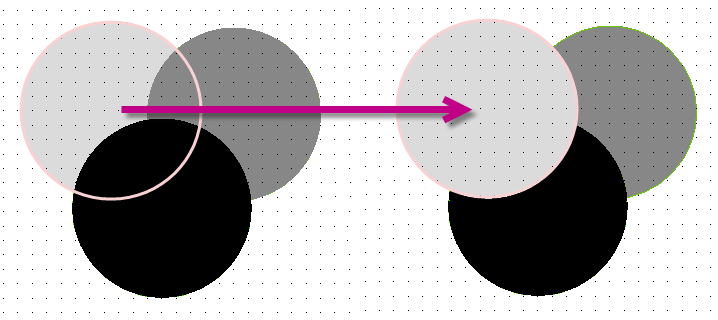

In the foreground

Places the selected object in front of all other objects in the drawing

Button:

Command name: MoveForward

Select the object to be moved to the foreground.
