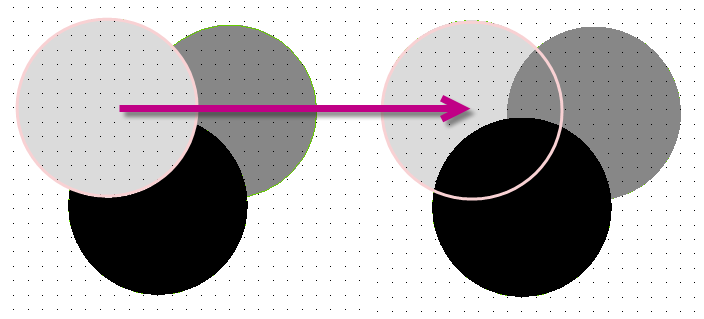

Into the background

Places the selected object behind all other objects in the drawing

Button:

Command name: MoveBack

Select the object to be moved to the background.
