3D components

Consumers are displayed as 3D components.

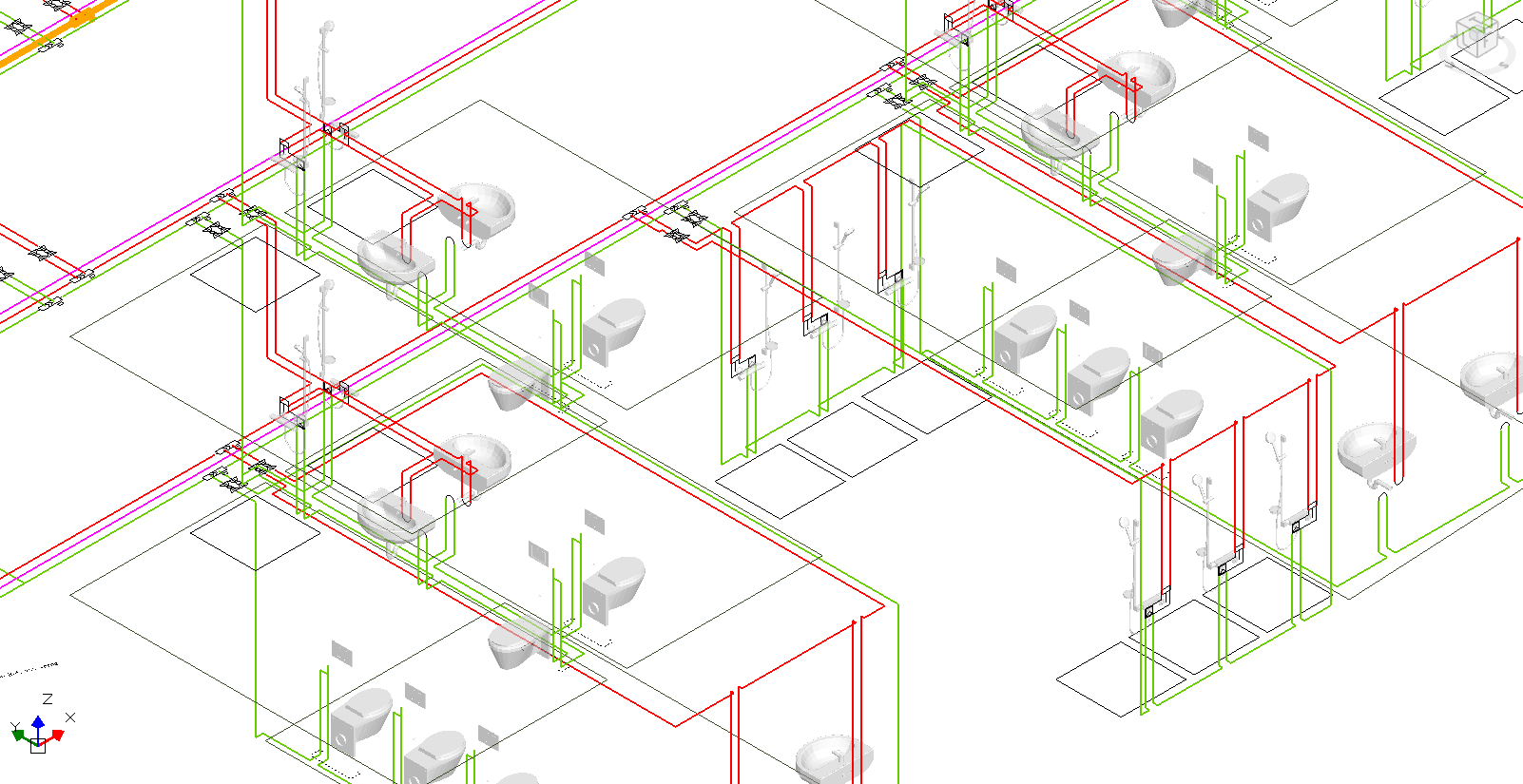

The following loads are displayed as 3D components in the 3D view and in the CAD window within the Material Editor .
For mixed-use appliances, the layout is determined by the cold water supply (PWC) and hot water supply (PWH) connections. Individual appliances are, where possible, arranged along a wall. If there is no wall available for arranging the individual appliances, they are shown in a rectangular layout.
