Single-pipe heating
Calculation of single-pipe systems

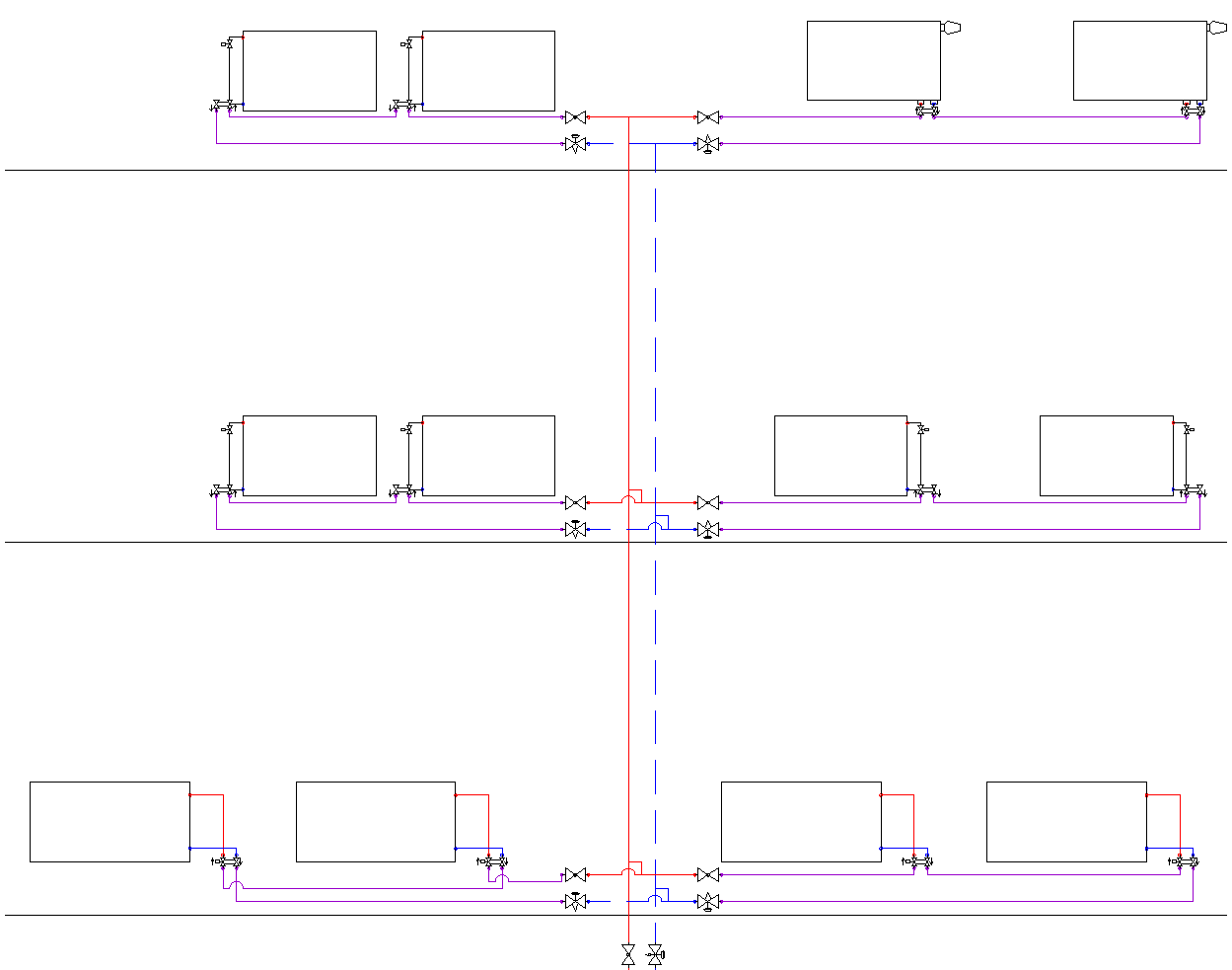

The hydraulic calculation of single-pipe systems enables balancing in existing buildings. The single-pipe system begins with a shut-off valve and ends with a flow regulator.
Drawing

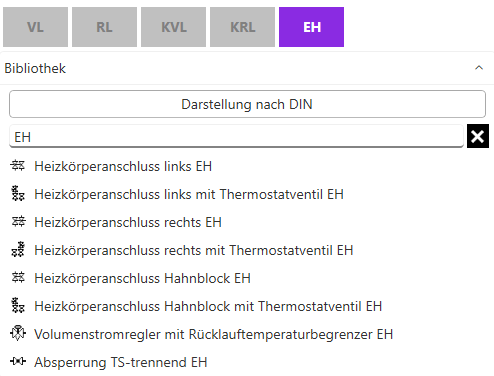

There is a new layer, EH. The component library has been expanded to allow the single-pipe system to be drawn.
Component properties

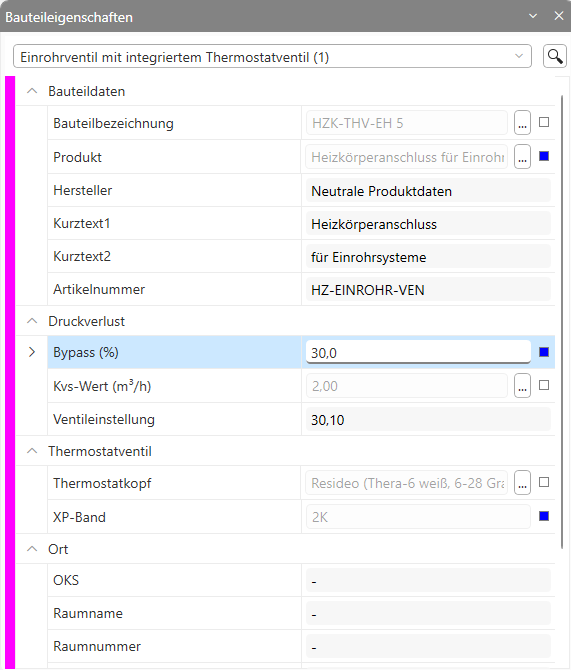

The bypass value can be set as a percentage in the component properties.
Inclusion of compact radiators
For the use of compact radiators, there are single-pipe components without thermostatic valves. If no compact radiators are included in the design, components with an integrated thermostatic valve must be used.

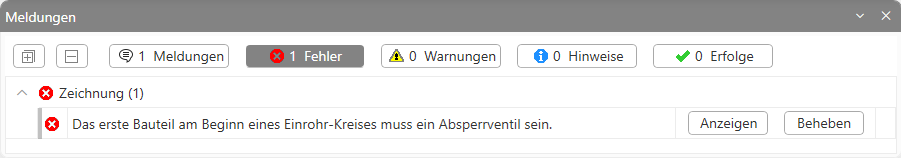

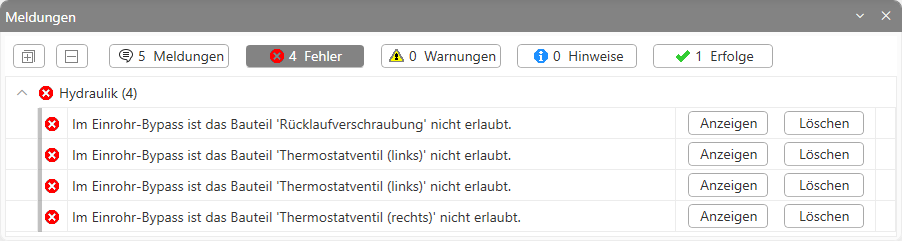

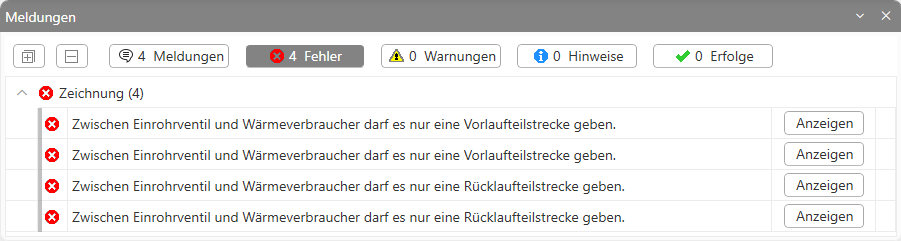

Numerous drawing validations are carried out.

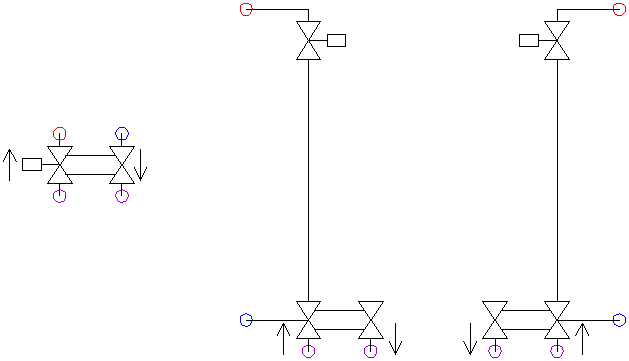

| Single-pipe components with an integrated thermostatic valve | Single-pipe components without an integrated thermostatic valve |
|---|---|
 |  |
