Room-based drawing
The Room-based drawing window in the Drinking water and waste water section allows you to configure and display all rooms and room combinations within the drawing.
Select configuration
Several configurations are available for use on delivery. These contain a preconfigured set of rules for line and room management.
Waste water configuration
Ventilation valve (waste water)
The configuration 4 Ventilation valve in the Room-based drawing window, which is integrated in the delivery state, connects the sanitary objects with individual and collective connection lines. Ventilation valves are generated automatically.

Appendix
- Pipe network basics
- Dialogues and additional information
  - 3D view
    The 3D view window displays a 3D overview of the currently captured or calculated drawing. The bidirectional link with the drawing ensures that the currently selected object is always visible in the drawing and in the view window.
  - Wastewater lifting unit
    The component Wastewater lifting unit is used to integrate components that are drained via the wastewater lifting unit in the drawing.
  - Design options (waste water)
    Drawing-specific settings relating to your calculation are set in the Design options dialogue.
  - Design options (heating)
    Drawing-specific settings relating to your calculation are set in the Design options dialogue.
  - Design options (drinking water)
    Drawing-specific settings relating to your calculation are set in the Design options dialogue.
  - Construction stages
    You can divide a drawing into construction stages so that you can later create a material extract according to construction stages.
  - Component properties
    In the Edit and Calculate work perspective, your selection in the drawing is highlighted in colour. Section properties and component properties can be displayed and edited differently from the global project settings.
  - Component filter
    The component filter allows you to quickly filter the selected components in the drawing.
  - Edit labelling
    The predefined labelling features can be configured in the text field {Platzhalter} for features and constant text.
  - CAD-Performance Tool
    The CAD Performance Tool is a tool for the automated revision of plans to improve performance.
  - Drainage areas
    The Drainage areas window in the Drainage section is divided into two tabs.
  - Find function
    STUDIO has a parameterised search function that supports you when searching for drawn sections and components in the drawing, when selecting smart blocks to insert and when selecting products.
  - Heat load report
    With the preview of the calculation output, STUDIO supports you in customising the calculation output.
  - Hydraulics report
    With the preview of the calculation output, STUDIO supports you in customising the calculation output.
  - Types of ventilation in building drainage
  - Mass extract
    With the preview of the mass statement, STUDIO supports you in customising the printout of the masses.
  - Material Editor
    STUDIO ’s Material Editor helps you to calculate your quantities quickly and easily.
  - Diaphragm expansion vessel
    The drawing of a diaphragm expansion vessel is a prerequisite for its design.
  - Options Wizard (waste water)
    The options wizard guides you through the settings for the design.
  - Options assistant (heating)
    The options wizard guides you through the settings for the design.
  - Options Wizard (drinking water)
    The options wizard guides you through the settings for the design.
  - Starting the Plot Wizard
    Starts the plot wizard
  - Project data
    The Project data dialogue contains project information for the current project, for example for the project cover sheet or to determine the rainfall donations.
  - Product sequence or product selection
    In the Product sequence or Product selection dialogue, select the product sequence or a product for components.
  - Project data
    The Project data dialogue contains project information for the current project, for example for the project cover sheet or to determine the rainfall donations.
  - Project and application settings
    Cross-project application settings are defined in the project and application settings.
  - Room-based drawing
    The Room-based drawing window in the Drinking water and waste water section allows you to configure and display all rooms and room combinations within the drawing.
    - Draw space
      Creates a space polygon on the DEND_RAUM layer in order to create the prerequisites for space-based drawing.
    - Select configuration
      Several configurations are available for use on delivery. These contain a preconfigured set of rules for line and room management.
      - Drinking water configuration
      - Waste water configuration
        Unventilated (waste water)
        The configuration 1 Unventilated in the Room-based drawing window, which is integrated on delivery, connects the sanitary objects with individual and collective connection lines. The ventilation connections are not connected in the floor during pipe generation.
        Ventilation via roof (waste water)
        Configuration 2 Ventilation via roof in the Room-based drawing window, which is integrated in the delivery state, connects the sanitary objects with individual and collective connection lines. Ventilation is automatically generated in the respective room.
        Direct secondary ventilation (waste water)
        Configuration 3 Direct secondary ventilation in the Room-based drawing window, which is integrated on delivery, connects the sanitary objects with individual and collective connection pipes. Direct secondary ventilation is automatically generated in the respective level.
        Ventilation valve (waste water)
        The configuration 4 Ventilation valve in the Room-based drawing window, which is integrated in the delivery state, connects the sanitary objects with individual and collective connection lines. Ventilation valves are generated automatically.
    - Options
      Under Options in the Room-based drawing window, you can access the configuration management of the selected configuration.
    - Delete all
      Delete all removes all pipework within the rooms.
    - Delete selection
      Delete selection removes all pipework within the selected rooms.
    - Update all
      With Update all, all pipework within the rooms is updated.
    - Update selection
      With Update selection, all pipework within the selected rooms is updated.
    - Overview of rooms and room groups
      The room informationis displayed in the tabular overview.
  - Schematic Generator
    The Schematic Generator makes it possible to design a complete wiring diagram without any CAD experience. In a floor plan drawing, the Schematic Generator is not active.
  - Simulation
    The simulation is divided into a circulation simulation for hot and cold water and a water withdrawal simulation.
  - Section properties
    In the Edit and Calculate work perspective, your selection in the drawing is highlighted in colour. Section properties and component properties can be displayed and edited differently from the global project settings.
  - Insert drawing reference
    The Insert drawing reference function guides you through the settings for inserting a drawing reference.
  - Water softening system
    The drawing of a water softening system is a prerequisite for its design.
- Component Library Report
- Extended command reference

Ventilation valve (waste water)

The configuration 4 Ventilation valve in the Room-based drawing window, which is integrated in the delivery state, connects the sanitary objects with individual and collective connection lines. Ventilation valves are generated automatically.

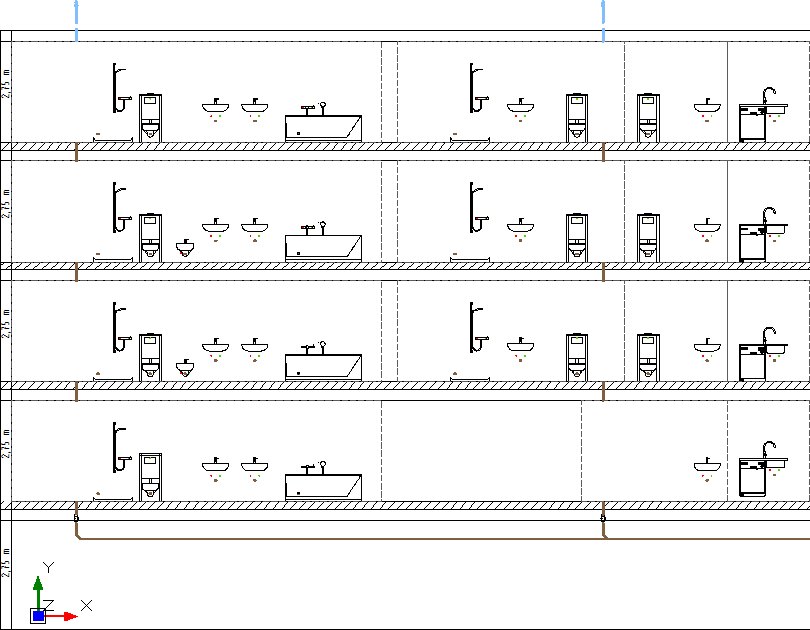

To generate a complete pipe network in accordance with the 4 ventilation valve rule set, rooms/room groups, sanitary objects, downpipes and ventilation pipes above the roof are required.

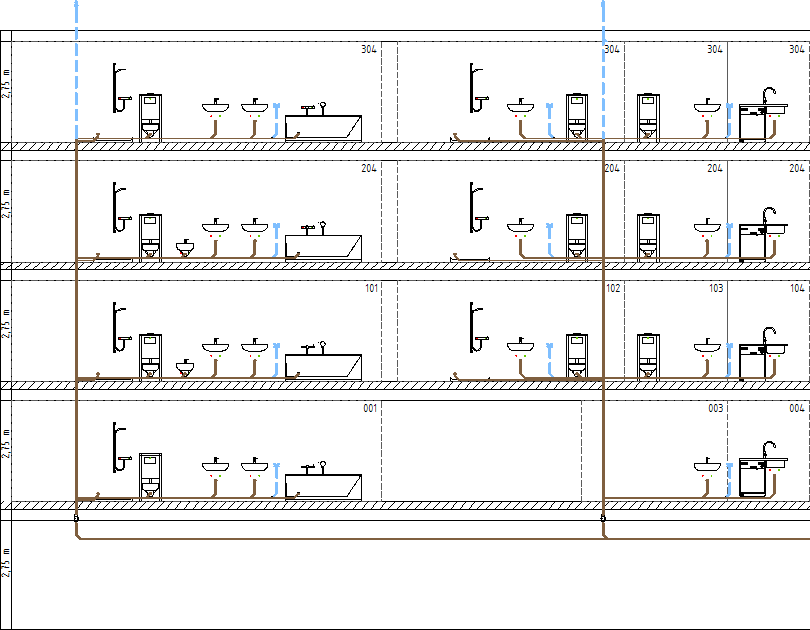

Once all pipes have been generated, the sanitary objects are connected with individual and collective connection pipes. Downpipes and ventilation pipes were created. Ventilation valves were also generated in the levels.
