Bypass ventilation

The following example shows the graphic representation of bypass ventilation.

Connect the ventilation pipe to the waste water pipe.
In the component library, expand the Ventilation end point/ventilation valve group with the right mouse button and select the ventilation end point.

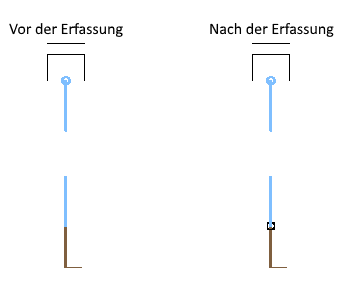

Place the ventilation end point at the end of the ventilation duct.

Note:
The layer connection is created automatically during detection.

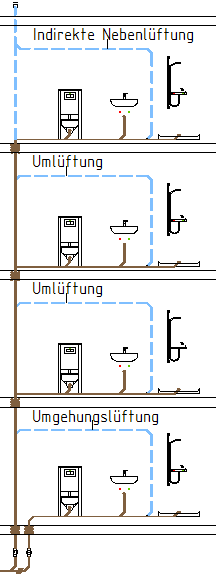

Example of bypass ventilation after detection:
