Ventilation valve

The following example shows the drawing of the aeration valve.

Connect the ventilation pipes to the waste water pipe on the floor.
In the component library, expand the Ventilation end point/ventilation valve group with the right mouse button and select the ventilation valve
Draw the associated main ventilation system.

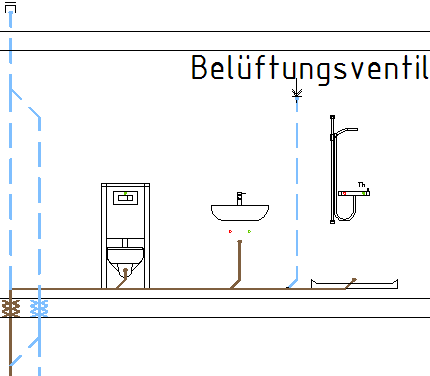

Example of a ventilation valve after capture:

You can find more information on our YouTube channel.

You can access the video here
