Decentralised DHW heating (design options for heating)

In the Decentralised DHW heating section, the formulas used to calculate and use the simultaneity factors for decentralised DHW heating for the home stations are specified.

Simultaneities

Select the desired definition from the drop-down menu.
DIN 4708, TU Dresden and VDI 2072 are available for selection.

Note:
The currently active setting colours the corresponding curve in the diagram red.

The simultaneity factors for home stations are calculated using the following formulae:
Table 1. Calculation of simultaneity factors
VDI 2072 TU Dresden DIN 4708
N: Number of identically equipped flats n: Number of home stations n: Number of home stations

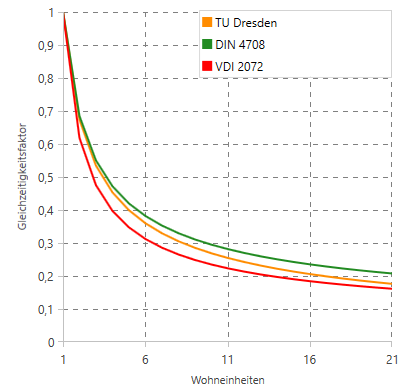

This results in the following diagram for the respective simultaneity factors:

Temperatures

Enter the inlet temperature for cold water (PWC) at the decentralised DHW heater in °C in the PWC inlet temperature input field.
In the PWH temperature with circulation input field, enter the outlet temperature for hot water (PWH) at the decentralised DHW heater when using hot water circulation (PWH-C) in °C.
In the PWH temperature without circulation input field, enter the output temperature for hot water (PWH) at the decentralised DHW heater in °C if no DHW circulation (PWH-C) is used.
