Design of supply stations (vaults)

Supply stations (vaults) can be dimensioned hydraulically.

New components and products for supply stations (vaults) have been added.

Drawing

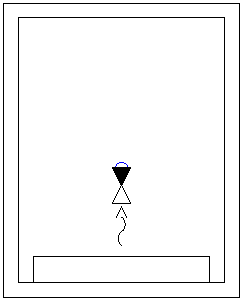

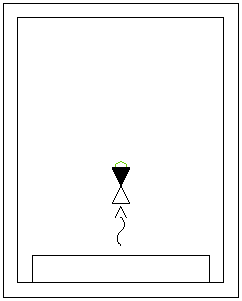

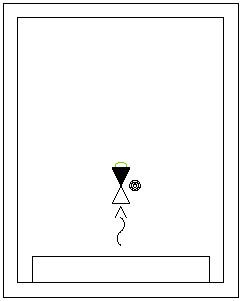

NPW and PWC: Supply station	NPW and PWC: Supply station as a continuous consumer

Configuration

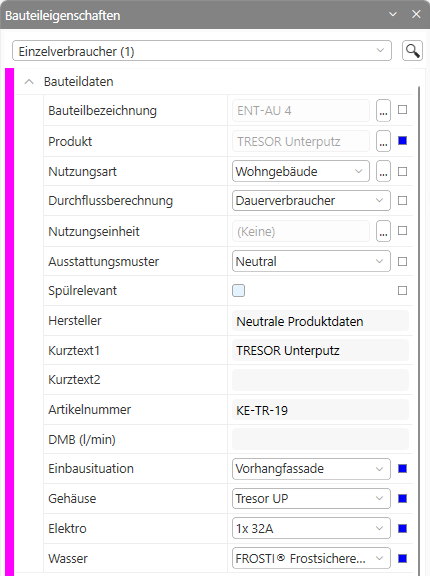

The component properties can be adjusted to match the specifications in accordance with the stored technical data. The design is carried out automatically on the basis of the set values or by manually specifying a product. If several products are suitable, the first product in the product sequence is used for the design.

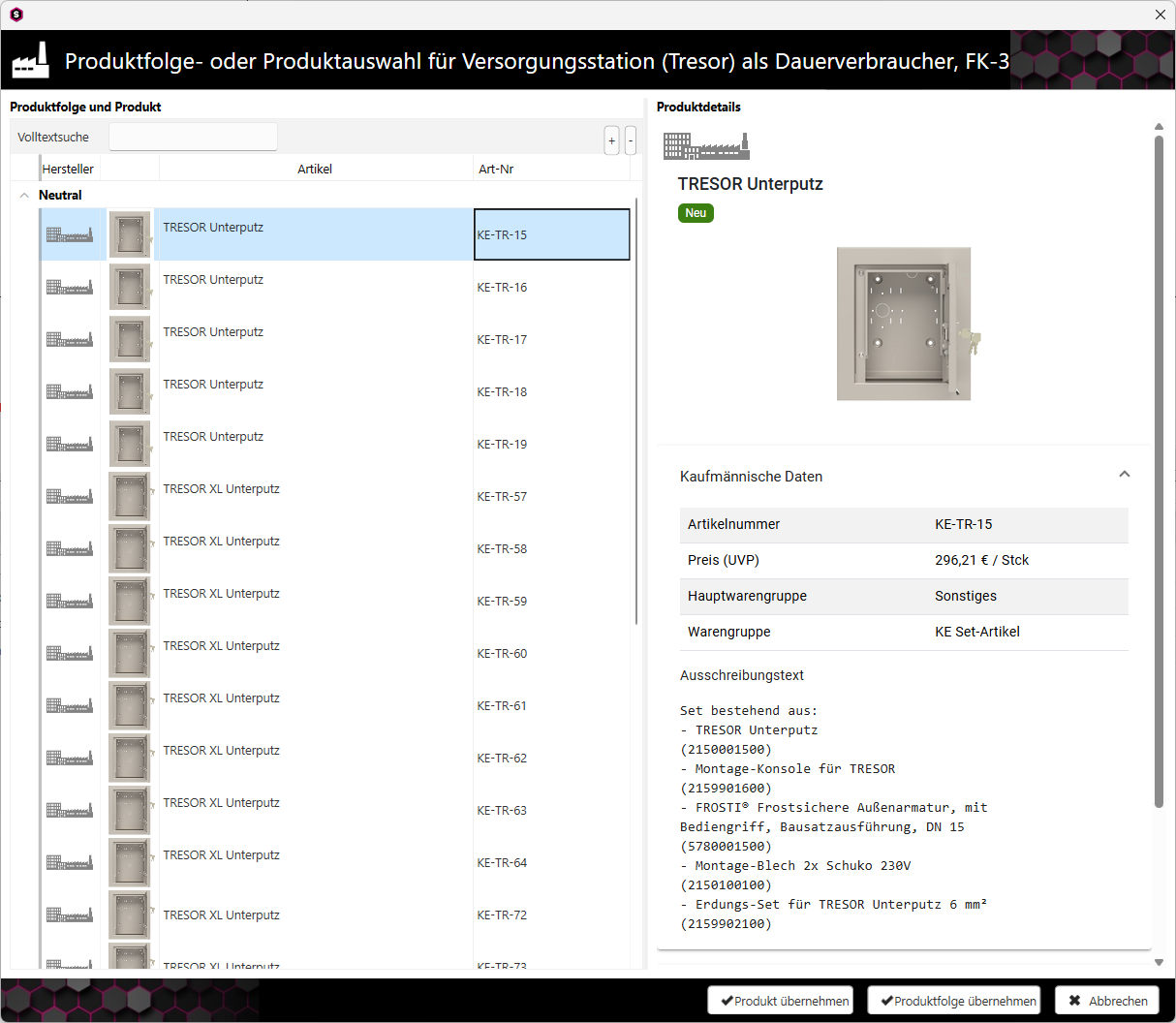

The individual components of the product are listed in the product sequences.
