OFang

Defines the mode for the continuous object snap

Button:

Command name: _snap

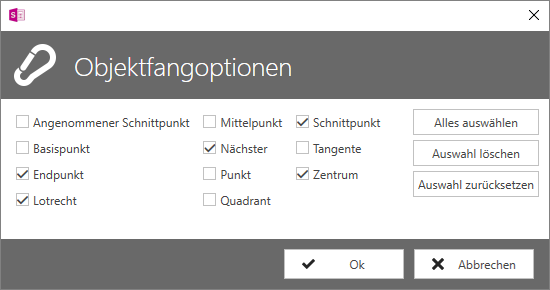

The Object snap options dialogue for specifying the object snap options opens.

Make the desired settings in the Object snap options dialogue.

You can also access the Object snap options dialogue by right-clicking on OFANG in the status bar at the bottom left in Dendrit STUDIO.
