Determination of fittings in the pipe system
CALHYDRA automatically calculates the fittings required for a form-fit pipe system.
The fittings determined are displayed in the Section components window. The following examples illustrate the automatic determination of fittings.

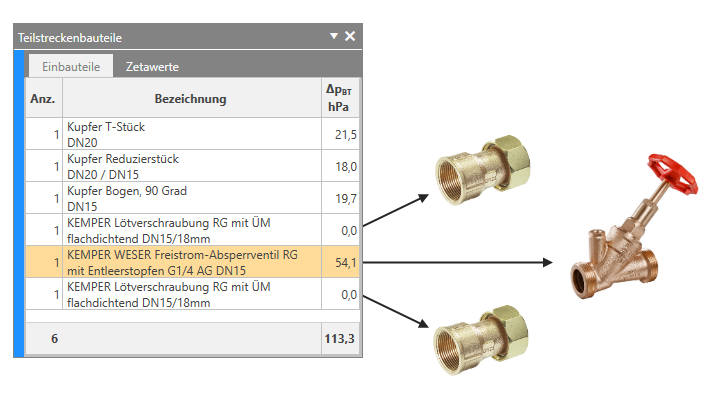

- Integration of a fitting in the pipe system:
-

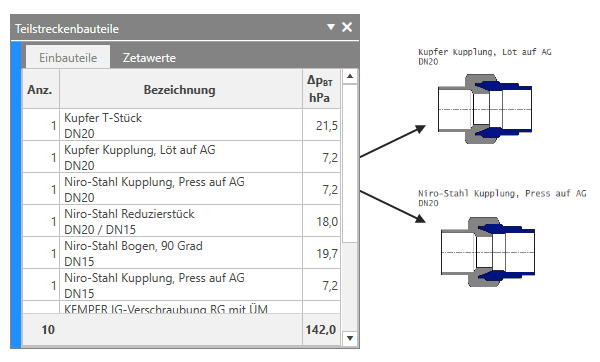

Connection of two pipe systems:
